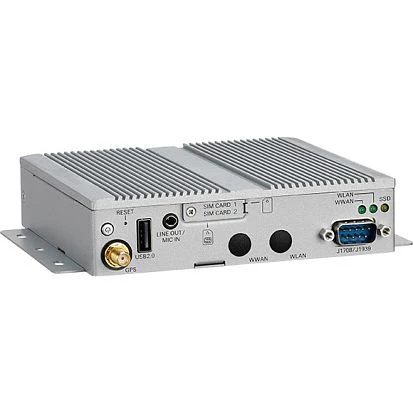

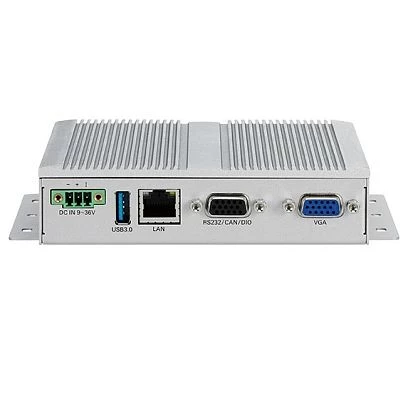

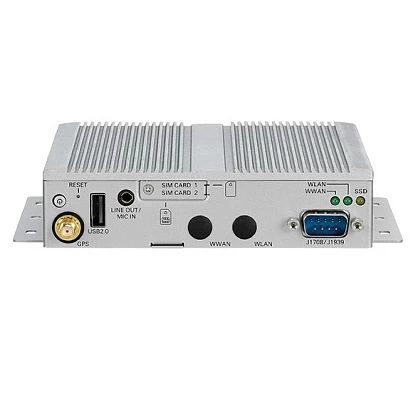

VTC-1910
NEXCOM
SKU: 07484000
Embedded server, Intel Atom E3815 1.46 GHz, 2GB DDR3L SO-DIMM 1066MHz/ 1333MHz, 1xmSATA, 1xSATA DOM, 1xVGA, 1xLAN, 2xRS-232, 1xCAN 2.0B, 2xUSB, 2xMini-PCIe, 2xSIM, 1xu-blox NEO-M8N, 9...36V DC input
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Wall
Type
Fanless
CPU
Processor Installed
Intel Atom E3815
Max CPU frequency
1.46 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
USB Total
2
USB 2.0
1
USB v3.x
1
Digital Input-Output
GPIO
3xDigital In / 3xDigital Out
Industrial Interfaces
CAN Port
2
Drive interfaces
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
2
Additional Functions
GPS
GPS
Connectors
Connectors
2xDB9, DB15 VGA, RJ45 Ethernet, 2xUSB, Mic In, Line Out, DC input (terminal block), 1xSMA (GPS antenna connector)
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows 8, Linux OS, Windows 10
Dimensions and weight
Width
130 mm
Height
32 mm
Depth
120 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Net Weight
1.1 kg
Gross Weight
1.3 kg
