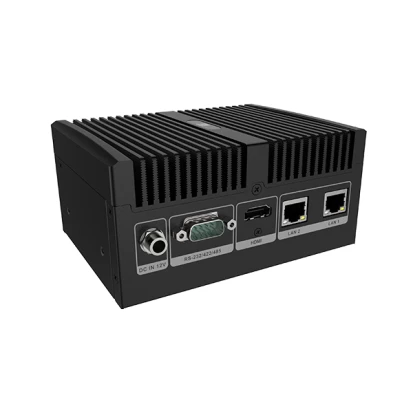

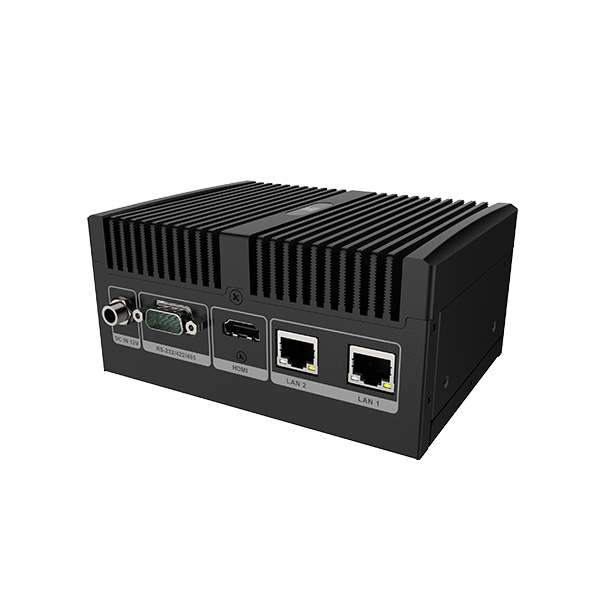

uIBX-260-EHL-JC

uIBX-260-EHL-JC

IEI
SKU: 57659600
Fanless Box-PC, Intel Celeron J6412 CPU, 8GB (Up to 16GB) LPDDR4x RAM, eMMC Storage Opt., HDMI, 2x2.5GbE LAN, 4xUSB 3.2, 2xUSB 2.0 Opt., 1xRS232/422/485, 1xRS232 Opt., 1x2.5" Drive Bay, 1xM.2 2280 Key-M, 1xM.2 2230 Key-A, 12VDC-in
Price on request
Available
Available

WLAN
Price with VAT
Price on request
Cable Kit #1
Price on request
Cable Kit #2
Price on request
WLAN
Price with VAT
Price on request
Cable Kit #1
Price on request
Cable Kit #2
Price on request

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 A
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
137 mm
Height
102.8 mm
Depth
65.8 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.97 kg
Gross Weight
1.74 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 A
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
137 mm
Height
102.8 mm
Depth
65.8 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.97 kg
Gross Weight
1.74 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 A
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
137 mm
Height
102.8 mm
Depth
65.8 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.97 kg
Gross Weight
1.74 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 A
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
137 mm
Height
102.8 mm
Depth
65.8 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.97 kg
Gross Weight
1.74 kg

Documentation
uIBX-260-EHL-Datasheet.pdf
Documentation
uIBX-260-EHL-Datasheet.pdf
Documentation
uIBX-260-EHL-Datasheet.pdf
Documentation
uIBX-260-EHL-Datasheet.pdf
