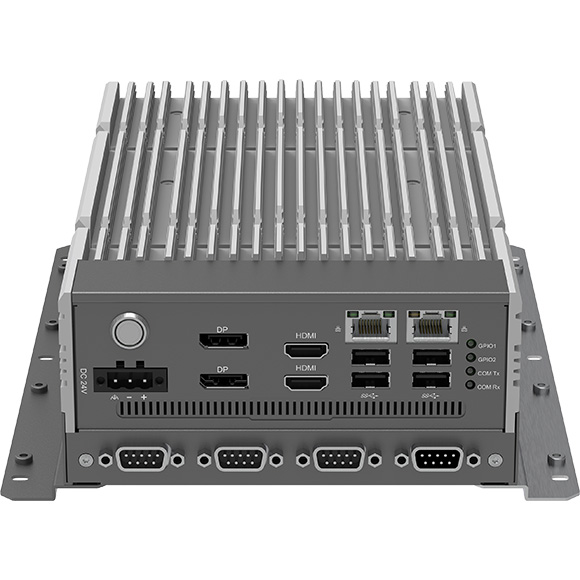

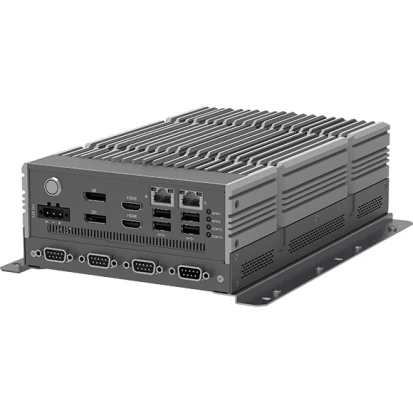

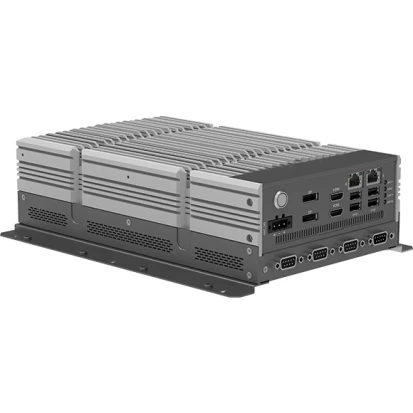

TT-300-A0Q

TT-300-A0Q

NEXCOM
SKU: 57646600
Fanless Box System TT300-A0Q, Intel 12th/13th Gen Core i7/i5/i3 CPU, up to 32GB DDR5 RAM, 2xHDMI, 2xDP, 4xUSB 3.0, 2xGbE LAN, 2xRS232/422/485, 2xRS232, 2x2.5" Drive Bay, 1xM.2 2280 Key-M, 1xM.2 3052/3042 Key-B, 1xMini-PCIe, 24VDC-in Terminal Block
Price on request
Available
Available

Power Adapter
Price with VAT
Price on request
Power Adapter
Price with VAT
Price on request

Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2280 M, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Connectors
Connectors
4xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, SIM Card Slot, 2xDisplayPort, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
200.2 mm
Height
81 mm
Depth
270 mm
Operating Conditions
Operating Temperature
-5..55 °C
Humidity
10-95%
Vibration
Random: 0.5Grms@5~500 Hz, IEC60068-2-64; 2Grms@5~500 Hz, IEC60068-2-64; Sinusoidal: 0.5Grms@5~500 Hz, IEC60068-2-6; 2Grms@5~500 Hz, IEC60068-2-6
Shock
SSD: 20G, half sine, 11ms, IEC60068-2-27; M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.4 kg
Gross Weight
5.3 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2280 M, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Connectors
Connectors
4xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, SIM Card Slot, 2xDisplayPort, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
200.2 mm
Height
81 mm
Depth
270 mm
Operating Conditions
Operating Temperature
-5..55 °C
Humidity
10-95%
Vibration
Random: 0.5Grms@5~500 Hz, IEC60068-2-64; 2Grms@5~500 Hz, IEC60068-2-64; Sinusoidal: 0.5Grms@5~500 Hz, IEC60068-2-6; 2Grms@5~500 Hz, IEC60068-2-6
Shock
SSD: 20G, half sine, 11ms, IEC60068-2-27; M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.4 kg
Gross Weight
5.3 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2280 M, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Connectors
Connectors
4xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, SIM Card Slot, 2xDisplayPort, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
200.2 mm
Height
81 mm
Depth
270 mm
Operating Conditions
Operating Temperature
-5..55 °C
Humidity
10-95%
Vibration
Random: 0.5Grms@5~500 Hz, IEC60068-2-64; 2Grms@5~500 Hz, IEC60068-2-64; Sinusoidal: 0.5Grms@5~500 Hz, IEC60068-2-6; 2Grms@5~500 Hz, IEC60068-2-6
Shock
SSD: 20G, half sine, 11ms, IEC60068-2-27; M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.4 kg
Gross Weight
5.3 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2280 M, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Connectors
Connectors
4xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, SIM Card Slot, 2xDisplayPort, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
200.2 mm
Height
81 mm
Depth
270 mm
Operating Conditions
Operating Temperature
-5..55 °C
Humidity
10-95%
Vibration
Random: 0.5Grms@5~500 Hz, IEC60068-2-64; 2Grms@5~500 Hz, IEC60068-2-64; Sinusoidal: 0.5Grms@5~500 Hz, IEC60068-2-6; 2Grms@5~500 Hz, IEC60068-2-6
Shock
SSD: 20G, half sine, 11ms, IEC60068-2-27; M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.4 kg
Gross Weight
5.3 kg

Documentation
TT-300-A Series User Manual TT-300-A0Q Datasheet
Documentation
TT-300-A Series User Manual TT-300-A0Q Datasheet
Documentation
TT-300-A Series User Manual TT-300-A0Q Datasheet
Documentation
TT-300-A Series User Manual TT-300-A0Q Datasheet
