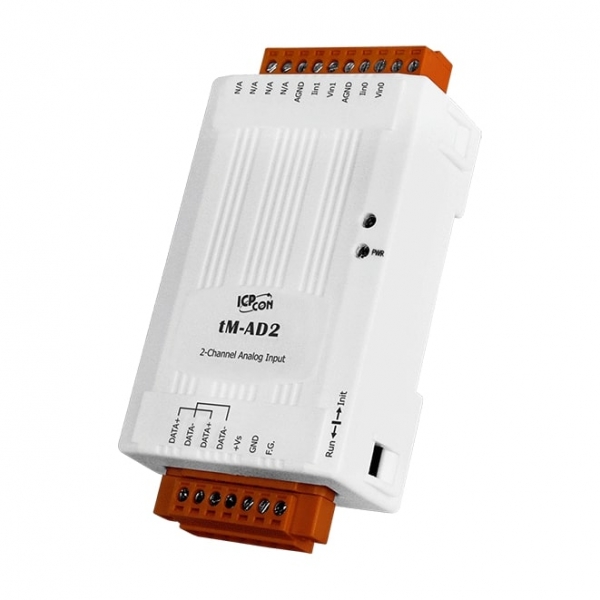

tM-AD2
ICP DAS
SKU: 07089900
2-channel Isolated Analog Input Module with High Voltage Protection(RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, Modbus ASCII slave, DCON slave
Analog Input
Total channels of analog input
2
Number of Bits
14 Bit
Voltage range
0...500 mV, 0...1 V, 0...2.5 V, 0...5 V, 0...10 V
Current range
0...20 mA, 4...20 mA
Sampling rate
10 Hz
Single-Ended channels
2
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.1 kg
Gross Weight
0.1 kg
