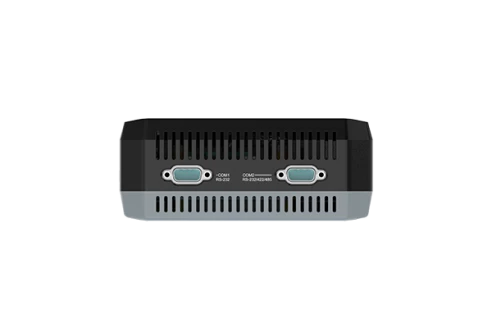

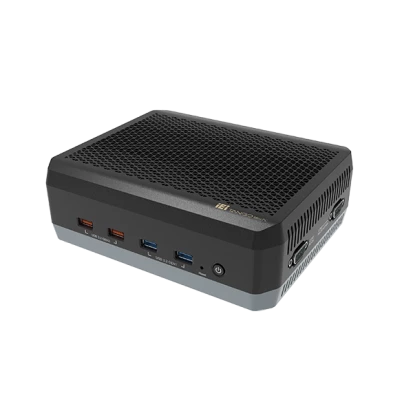

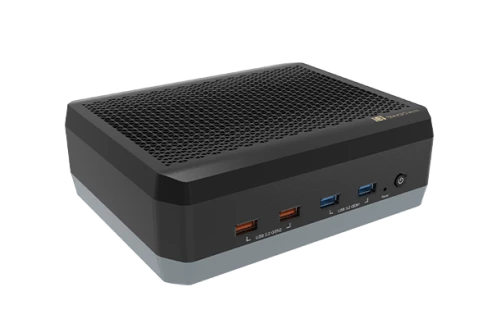

TANGO-7010-i5AWC
IEI
SKU: 57660600
Embedded Box-PC with Fan, Intel 12th Gen Core i5-12500TE CPU, Intel H610, 8GB (up to 64GB) DDR4 RAM, 2xHDMI, DP, 3x2.5GbE LAN, 4xUSB 3.2, 2xCOM, WiFi6E/BT5.2, 1x2.5" Drive Bay, 2xM.2 2280 M-Key, TPM 2.0, 12VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Desktop, Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-12500TE
Socket
LGA1700
Max CPU frequency
4.3 GHz
Chipset
Chipset
Intel H610
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, 2xHDMI
Ethernet
Controller Type
Intel i226V
Total Ethernet
3
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
2
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, 2xHDMI, 3xRJ45 Ethernet, 4xUSB, DC Input, Display Port
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
192.09 mm
Height
64 mm
Depth
158 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.29 kg
Gross Weight
2.34 kg
