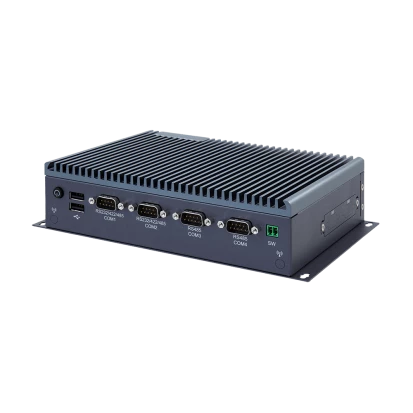

SB-244-1J64-R4S128
Arbor
SKU: 57838200
Industrial Fanless Box PC, Intel Celeron J6412 CPU, 8GB DDR4, 128GB SATA SSD, HDMI/DP, 3x2.5GbE LAN, 1xGbE LAN, 4xCOM (max. 6x), 2xUSB3.2, 5xUSB2.0, 1x8-bit GPIO, 1x2.5" Drive Bay, 1xM.2 2242, 1xM.2 2230, 1xMiniPCIe, SIM, Audio, 12-24VDC-in, -10..60C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i210-AT, Intel i226V
Total Ethernet
4
10/100/1000 Mbit/s
1
2,5 Gbit/s
3
Interfaces
COM Total
6
RS-232
2
RS-485
2
RS-232/422/485
2
USB Total
7
USB 2.0
4
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, HDMI, 4xRJ45 Ethernet, 7xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10, Ubuntu 20.04
Dimensions and weight
Width
200 mm
Height
153 mm
Depth
52.8 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
Vibration
5~500Hz, 2Grms, operation
Shock
Operation: 10G@11ms; Non-operation: 30G@11ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.5 kg
Gross Weight
1.9 kg
