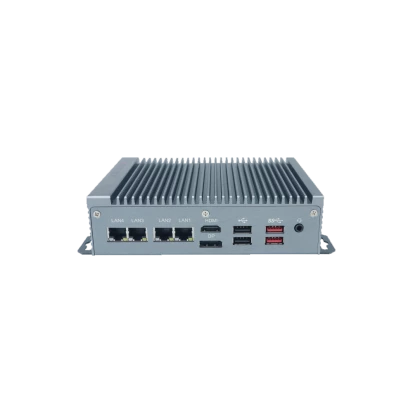

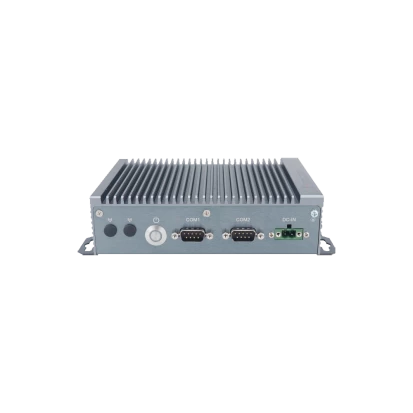

SB-142-2J64-M
Arbor
SKU: 57875700
Industrial Fanless Box PC, Intel Celeron J6412 CPU, up to 32GB DDR4, HDMI/DP, 3x2.5GbE LAN, 1xGbE LAN, 2xCOM, 2xUSB3.2, 2xUSB2.0, Optional 1x8-bit GPIO, Audio, 1xM.2 2242 SATA/1x Mini-PCIe, 1xM.2 2230, 12-24VDC-in, -20..60C, Possible MOQ100
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps, Intel i226V
Total Ethernet
4
10/100/1000 Mbit/s
1
2,5 Gbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Connectors
Connectors
2xDB9, HDMI, 4xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10, Ubuntu 20.04
Dimensions and weight
Width
165 mm
Height
120 mm
Depth
50 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
5-95%
Vibration
5~500Hz, 2Grms, operation
Shock
Operation: 10G@11ms; Non-operation: 30G@11ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.8 kg
Gross Weight
1.5 kg
