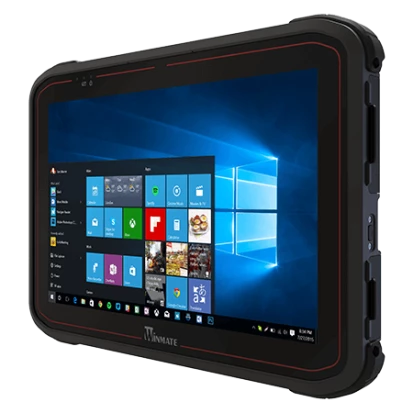

S101TG

S101TG

Winmate
SKU: 57326300
10.1" Rugged Tablet PC, 1920x1200, 800 cd/m2, PCAP Touch Screen, Intel Core i5-1135G7 4.2GHz, 4GB DDR4 RAM, 128GB M.2 SSD, 1xGbit LAN, 2xUSB, Wi-Fi, BT, GNSS, Audio, microSDXC and SIM slots, Battery 11.4V, 3500MAh Li-Poly, Win 10 IoT Enterp. Value
Price on request
Available
Available

Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
800 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Interfaces
Micro HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
SD Slots
1
Storage Cage
Number Of Cage External
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS, GLONASS
Antenna characteristics
Cellular interfaces
4G (Optional), 5G
Bluetooth
Yes
LED / Controls
LED
Battеry Status, Power LED, SSD LED
Controls
On/Off, Control Buttons
Connectors
Connectors
RJ45 Ethernet, Audio, SIM Card Slot, MicroSD card slot, Micro HDMI, USB type A, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
4558 mA*h
RunTime Battery 1
6 h
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
272 mm
Height
192 mm
Depth
25 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Shock
MIL-STD-810H Method 516.8 Procedure I
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.1 kg
Gross Weight
2 kg
