R19L300-65M1

R19L300-65M1

Winmate
SKU: 05140100

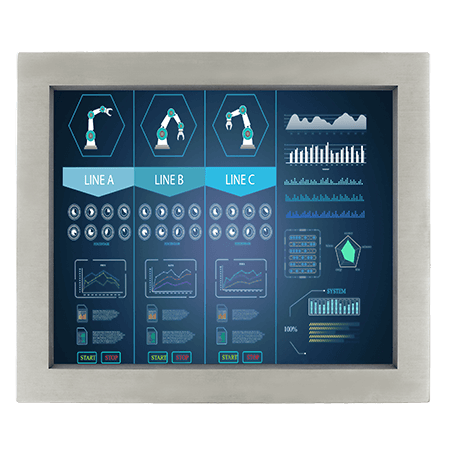

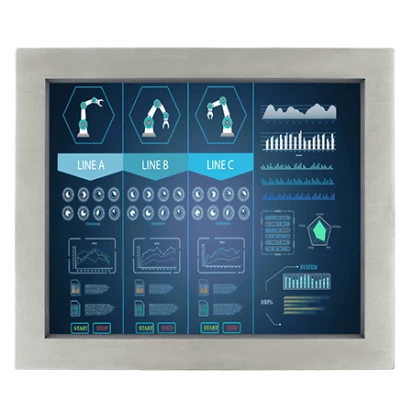

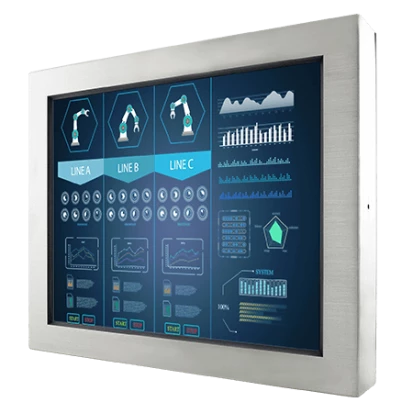

19" TFT LCD Monitor with Resistive Touch Screen, VGA Input, VESA Mounting, IP65, stainless steel
Price on request
Available
Available

Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Connectors
Connectors
M12 USB, M12 DC-in, M12 VGA
System Power Input
Input Voltage DC
12..12 V
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
468 mm
Height
395 mm
Depth
63 mm
Dimensions
Net Weight
17 kg
Gross Weight
20 kg
