R19L300-67M1

R19L300-67M1

Winmate
SKU: 56535100

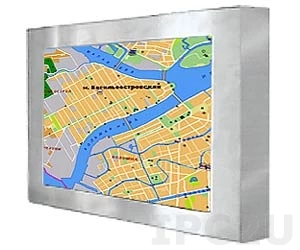

Industrial Stainless 19" LCD Display, Full IP67, 1280x1024,Optional touchscreen, front panel stainless steel, VGA, external power adapter 12V 100-240V AC, power supply 12V DC
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP67
Protection Level of Chassis
IP67
Material Front Side (Panel)
Stainless Steel Front Panel
Display
Display Type
LCD
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
M12 DC-in, 10-pin M12 VGA
System Power Input
Input Voltage DC
12..12 V
Power Consumption
27 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
457.4 mm
Height
370 mm
Depth
61.49 mm
Dimensions
Net Weight
4.8 kg
Gross Weight
6 kg
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP67
Protection Level of Chassis
IP67
Material Front Side (Panel)
Stainless Steel Front Panel
Display
Display Type
LCD
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
M12 DC-in, 10-pin M12 VGA
System Power Input
Input Voltage DC
12..12 V
Power Consumption
27 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
457.4 mm
Height
370 mm
Depth
61.49 mm
Dimensions
Net Weight
4.8 kg
Gross Weight
6 kg
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP67
Protection Level of Chassis
IP67
Material Front Side (Panel)
Stainless Steel Front Panel
Display
Display Type
LCD
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
M12 DC-in, 10-pin M12 VGA
System Power Input
Input Voltage DC
12..12 V
Power Consumption
27 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
457.4 mm
Height
370 mm
Depth
61.49 mm
Dimensions
Net Weight
4.8 kg
Gross Weight
6 kg
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP67
Protection Level of Chassis
IP67
Material Front Side (Panel)
Stainless Steel Front Panel
Display
Display Type
LCD
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
M12 DC-in, 10-pin M12 VGA
System Power Input
Input Voltage DC
12..12 V
Power Consumption
27 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
457.4 mm
Height
370 mm
Depth
61.49 mm
Dimensions
Net Weight
4.8 kg
Gross Weight
6 kg
Documentation
R19L300-67M1-Datasheet
Documentation
R19L300-67M1-Datasheet
Documentation
R19L300-67M1-Datasheet
Documentation
R19L300-67M1-Datasheet
