R10L100-GCT2-C

R10L100-GCT2-C

Winmate
SKU: 08650800

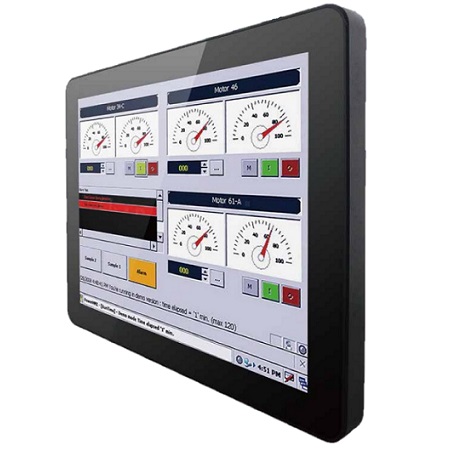

10.4" LED LCD monitor IP65, 1024x768, 350 nit,contrast ratio 1200, projected capacitive multi-touch (USB interface), power USB Type-C 5V, w/o external USB Type C cable
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
350 Cd/m2
Contrast Ratio
1200~1
Touch Screen
Touch Screen Type
Capacitive
LED / Controls
LED
1xOn/Off LED
Controls
On/Off, Control Buttons
Connectors
Connectors
USB type C
System Power Input
Input Voltage DC
5..5 V
Power Consumption
10 W
Power Supply
Type of Power Supply
USB adapter
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
252.41 mm
Height
197.8 mm
Depth
43 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
1 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
350 Cd/m2
Contrast Ratio
1200~1
Touch Screen
Touch Screen Type
Capacitive
LED / Controls
LED
1xOn/Off LED
Controls
On/Off, Control Buttons
Connectors
Connectors
USB type C
System Power Input
Input Voltage DC
5..5 V
Power Consumption
10 W
Power Supply
Type of Power Supply
USB adapter
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
252.41 mm
Height
197.8 mm
Depth
43 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
1 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
350 Cd/m2
Contrast Ratio
1200~1
Touch Screen
Touch Screen Type
Capacitive
LED / Controls
LED
1xOn/Off LED
Controls
On/Off, Control Buttons
Connectors
Connectors
USB type C
System Power Input
Input Voltage DC
5..5 V
Power Consumption
10 W
Power Supply
Type of Power Supply
USB adapter
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
252.41 mm
Height
197.8 mm
Depth
43 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
1 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
350 Cd/m2
Contrast Ratio
1200~1
Touch Screen
Touch Screen Type
Capacitive
LED / Controls
LED
1xOn/Off LED
Controls
On/Off, Control Buttons
Connectors
Connectors
USB type C
System Power Input
Input Voltage DC
5..5 V
Power Consumption
10 W
Power Supply
Type of Power Supply
USB adapter
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
252.41 mm
Height
197.8 mm
Depth
43 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
1 kg

Documentation
Datasheet R10L100-GST2-C
Documentation
Datasheet R10L100-GST2-C
Documentation
Datasheet R10L100-GST2-C
Documentation
Datasheet R10L100-GST2-C
