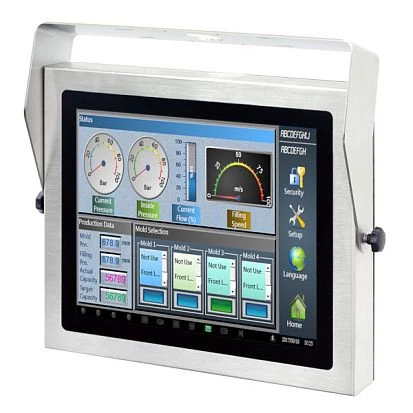

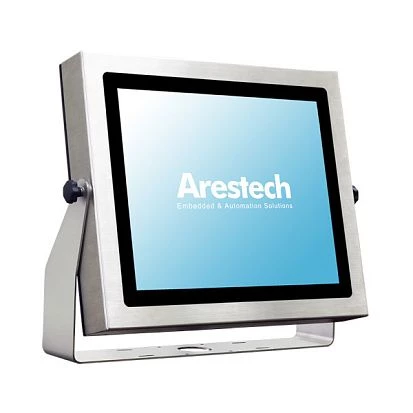

TPM-3617P-B6A2
Arestech
SKU: 57251000
17" 4:3 (1280 x 1024), 350 cd/m2, Stainless Steel 316 Full IP66/69K Protection, projected capacitive touch, 1x VGA M12, 1x USB M12, HDMI (IP67 connector), 12..24VDC M12, -20..60C operating temperature
Price on request
Available
Available
Construction
Construction Chassis
Rubber
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75, Yoke mounting, VESA 200x100
Protection Level of Front Side (Panel)
IP69K
Protection Level of Chassis
IP66
Material Front Side (Panel)
Stainless Steel Front Panel
Display
Display Type
LCD
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
Controls
Control Buttons
Connectors
Connectors
HDMI, M12 VGA
System Power Input
Input Voltage DC
12..24 V
Power Consumption
22 W
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Dimensions and weight
Width
439 mm
Height
373 mm
Depth
66.9 mm
Dimensions
Net Weight
7.5 kg
Gross Weight
11.5 kg
