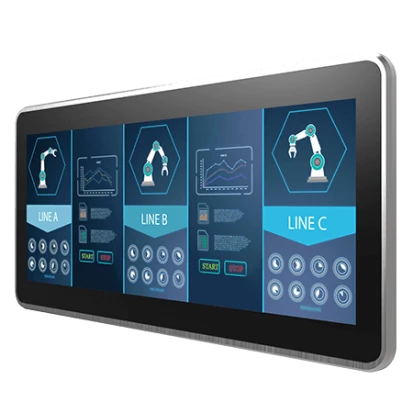

W15L100-PPB2

W15L100-PPB2

Winmate
SKU: 10760000
14.9" Industrial Panel Display, IP65 Front, 1920x720 TFT LCD, 950cd/m2, PCAP Touch, VGA, HDMI Opt., DVI Opt., 1xUSB, Audio Opt., 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
14.9 "
Maximum resolution
1920x720 Dots
Brightness
950 Cd/m2
Contrast Ratio
1000~1
Input Interface
HDMI, VGA
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Temperature (Storage)
-10~+60
Dimensions and weight
Width
400 mm
Height
187.6 mm
Depth
59 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5.5 kg
Gross Weight
6.5 kg
