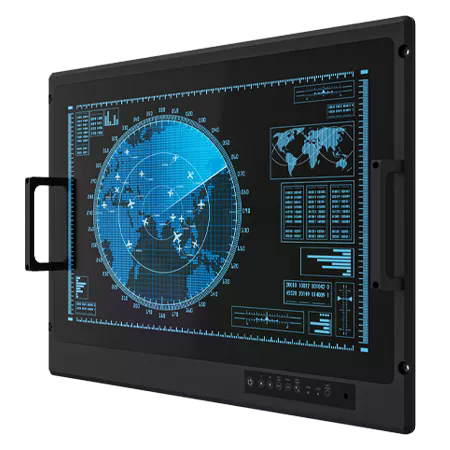

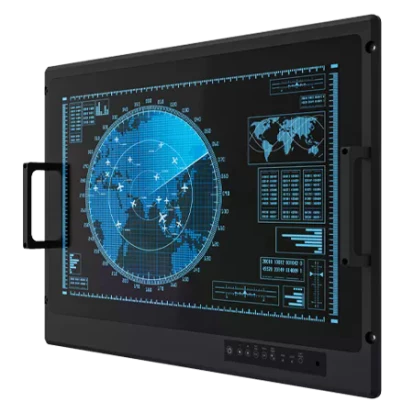

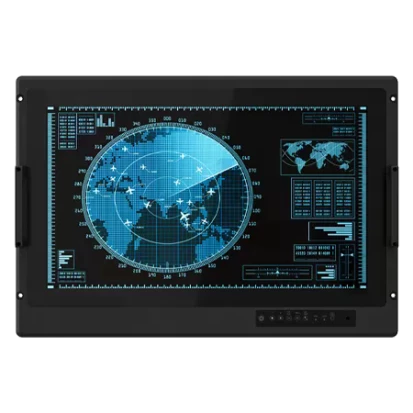

W24L100-MLL1FP
Winmate
SKU: 80191100
23.8" Military Display, MIL-STD-810H/461G Certification, 3840 x 2160, 540 cd/m2, PCAP Touch, DP, DVI, VGA, 2xHDMI Opt., Optional: (USB, COM, Audio), 100-240VAC-in (9-36VDC-in Optional)
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount, Wall VESA 100, VESA 200x100
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
3840x2160 Dots
Aspect Ratio
16:9
Brightness
540 Cd/m2
Contrast Ratio
1200~1
Input Interface
DisplayPort, VGA, DVI
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
DVI, DB15 VGA, 1xUSB, DC Input, Display Port
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
Internal
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-95%
Dimensions and weight
Width
630 mm
Height
430.5 mm
Depth
66 mm
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
13 kg
Gross Weight
14.5 kg
