W22L100-CHA3HB

W22L100-CHA3HB

Winmate
SKU: 57912100

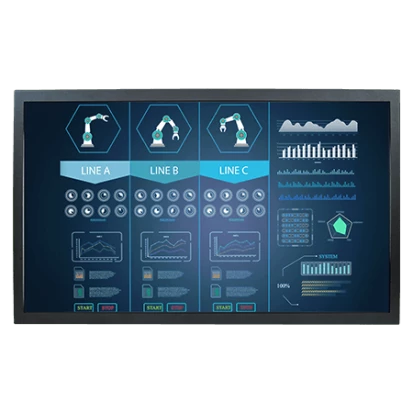

21.5" Industrial Chassis Panel Display, 1920x1080 TFT LCD, 1000cd/m2, Resistive Touch, Protection Glass Opt., 1xVGA, HDMI Opt., DVI Opt., 1xUSB, Audio Opt., 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
1000 Cd/m2
Contrast Ratio
5000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Temperature (Storage)
-10~+60
Dimensions and weight
Width
506.5 mm
Height
302.5 mm
Depth
60.5 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
9 kg
Gross Weight
10.3 kg
