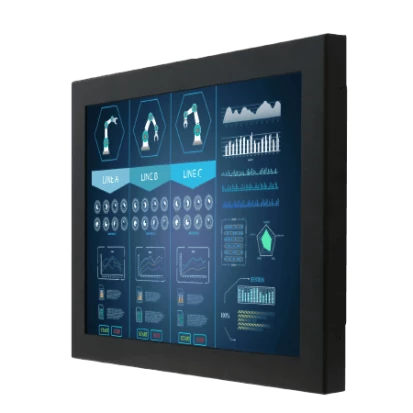

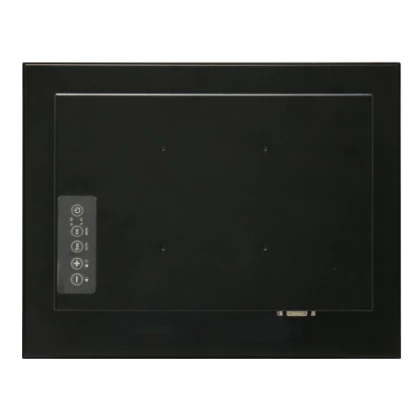

R12L600-CHM2TR

R12L600-CHM2TR

Winmate
SKU: 57911800
12.1" Industrial Chassis Panel Display, 1024x768 TFT LCD, 600cd/m2, Resistive Touch, Protection Glass Opt., 1xVGA, HDMI Opt., DVI Opt., 1xUSB, Audio Opt., 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Brightness
600 Cd/m2
Contrast Ratio
700~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Temperature (Storage)
-10~+60
Dimensions and weight
Width
290 mm
Height
230 mm
Depth
45 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
5.5 kg
Gross Weight
6.3 kg
