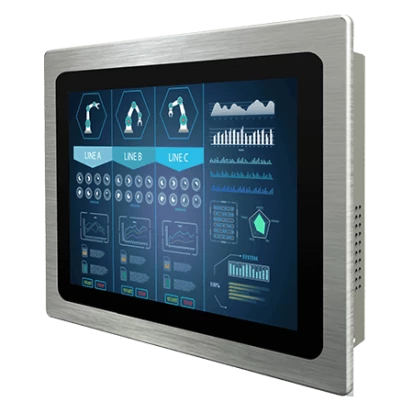

R10L100-PPP1HB

R10L100-PPP1HB

Winmate
SKU: 57908800
10.4" Industrial Panel Display, IP65 Front, 800x600 LCD LED, 1000cd/m2, PCAP Touch, VGA, HDMI Opt., DVI Opt., 1xUSB, Audio Opt., 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
Aspect Ratio
4:3
Brightness
1000 Cd/m2
Contrast Ratio
400~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
1xOn/Off LED
Controls
KeyPad
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Temperature (Storage)
-10~+60
Dimensions and weight
Width
284.2 mm
Height
252 mm
Depth
55 mm
Dimensions
Net Weight
2.3 kg
Gross Weight
2.9 kg
