R19L100-GCM1

R19L100-GCM1

Winmate
SKU: 08594500

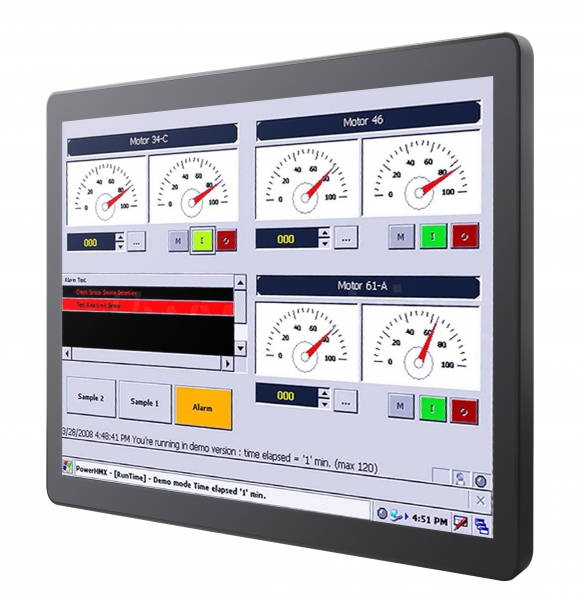

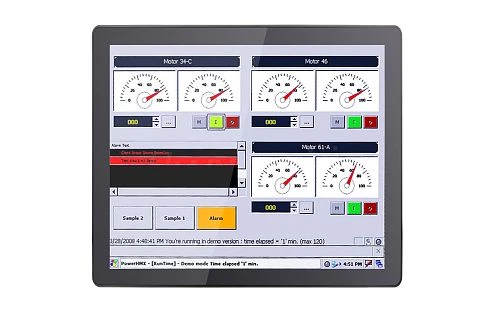

19" Industrial G-WIN Panel Display, GS-Series, IP65 Front, 1280x1024 TFT LCD, 250cd/m2, PCAP Touch, 1xVGA, HDMI Opt., DVI Opt., 1xUSB, 12VDC-in w/ PSU
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Plastic component
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Vibration
MIL-STD-810G Method 514.6
Shock
MIL-STD-810G Method 516.6
Temperature (Storage)
-10~+60
Dimensions and weight
Width
445 mm
Height
370 mm
Depth
51 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
10.3 kg
Gross Weight
12 kg
