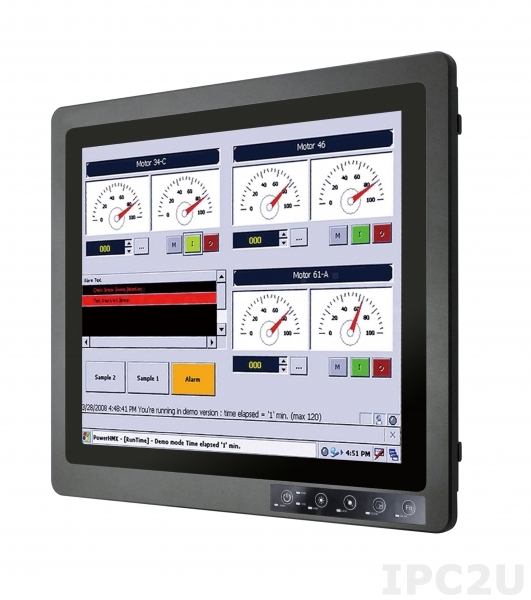

R19L100-67FTP

R19L100-67FTP

Winmate
SKU: 07001800
Industrial 19" Display, Full IP67, 1024x1024, aluminum front panel, PCAP touch, 3xM12 (VGA, USB, DC), external power adapter12V DC 100-240V AC, power supply 9-36V DC (M12)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP67
Protection Level of Chassis
IP67
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
DC Input, 4xM12
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions and weight
Width
474 mm
Height
410 mm
Depth
111 mm
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
10.3 kg
Gross Weight
13.5 kg
