R19IB7T-PPM1

R19IB7T-PPM1

Winmate
SKU: 56537400

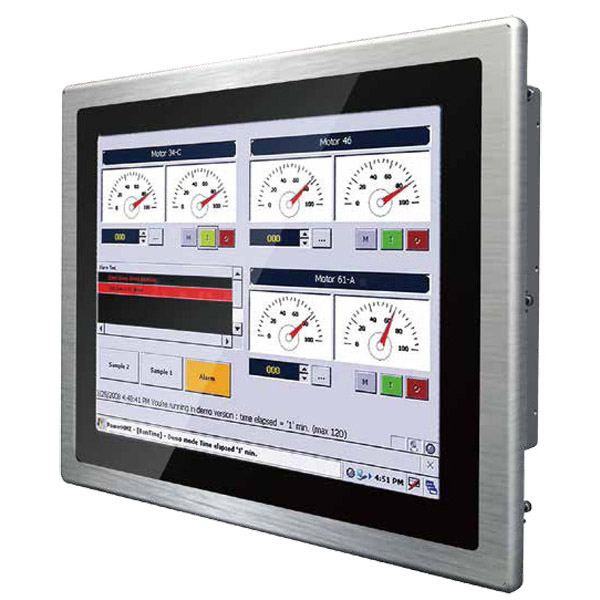

Fanless Panel PC 19" LED LCD, 1280 x 1024, P-CAP Multi-Touch, Intel Celeron Bay Trail-M N2930, 1.83 GHz, 4GB DDR3L 1333/1600, 64GB mSATA SSD, VGA, 1x eDP, 3xUSB 2.0, 1xUSB 3.0, 2xCOM, 2x RJ45 1000 Mbps, 2 x Mini PCIe 2x PS/2,12VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB15 VGA, 2xRJ45 Ethernet, 2xUSB, Mic In, Line In, Line Out, DC Input, 2xPS/2 Keyboard/Mouse
System Power Input
Input Voltage DC
12..12 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 10 IoT Enterprise
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
3 kg
Gross Weight
4 kg
