R17L100-RKA1ML

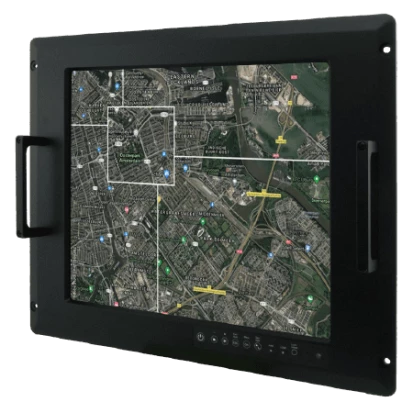

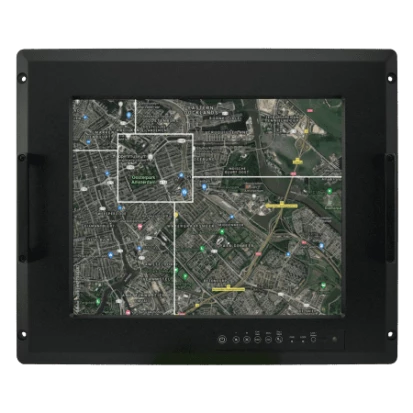

R17L100-RKA1ML

Winmate
SKU: 07034300
17" Military Grade Rugged Display, 1280x1024, brightness 350 cd/m2, VGA, DVI-D, 5xBNCs, power input 100-240V AC 32W (MIL-38999-1)
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
19" Rackmount, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Input Interface
VGA, DVI-D
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
DVI-D, DB15 VGA, 5xBNCs (R,G,B,H,V), Power Input (MIL-DTL-38999/1)
System Power Input
Input Voltage AC
100..240 V
Power Supply
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Dimensions and weight
Width
482.6 mm
Height
399.3 mm
Depth
69 mm
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810F Test Method 516.5 Crash Hazard, MIL-STD-810F Test Method 514.5 Highway Truck, MIL-STD-810F Test Method 507.4 Humidity
Dimensions
Gross Weight
12 kg
