R15IB3S-EHC3

R15IB3S-EHC3

Winmate
SKU: 56536600

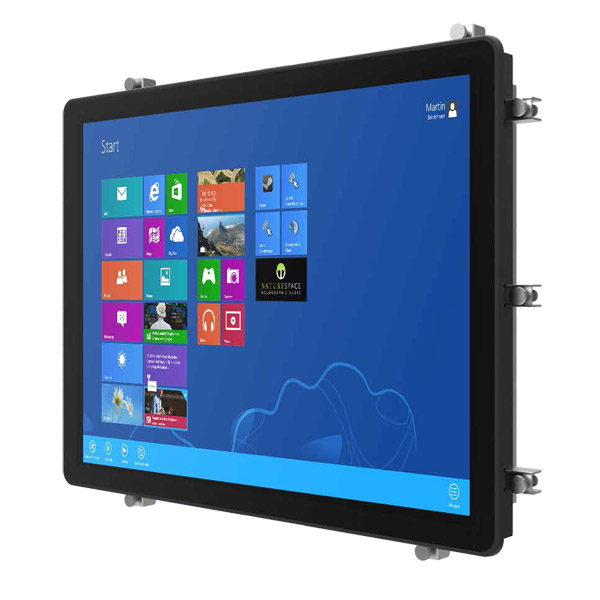

Fanless Panel Computer 15" TFT LCD, 1024 x 768, P-CAP Multi-Touch, Intel Celeron N2930 1.83 GHz, 2GB DDR3L 1066/1333, 64GB mSATA SSD, HDMI, 2x USB, 1x 1000, 1xCOM, 12VDC-in
Price on request
Available
Available

Construction
Protection Level of Front Side (Panel)
IP65
Display
Diagonal
15 "
Maximum resolution
1024x600 Dots
Brightness
300 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
4 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Connectors
Connectors
HDMI, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Dimensions and weight
Width
276.7 mm
Height
352.5 mm
Depth
56.3 mm
Operating Conditions
Operating Temperature
-10..50 °C
Dimensions
Net Weight
3 kg
Gross Weight
4 kg
