R15FA3S-PCC3-POE

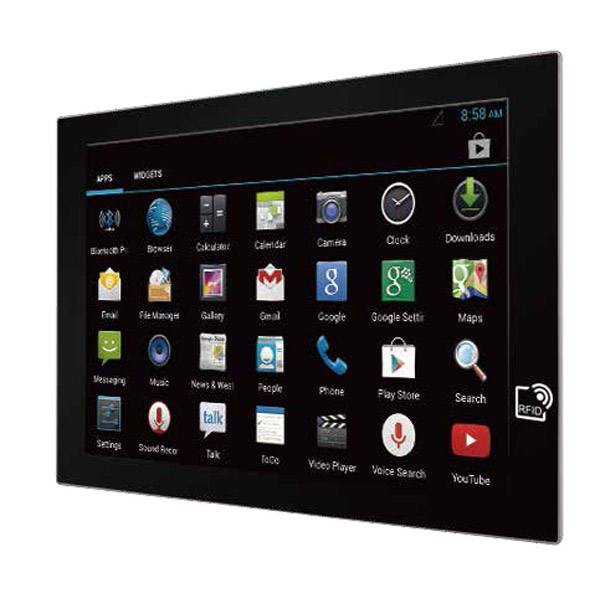

HMI-S Series IndustrialPanel PC with ARM/Intel CPU, Up to 8GB RAM, 16 GB eMMC, from 7'' to 15'' Display with PCAP Touchscreen, PoE The HMI-S Series includes a range of 7" to 15.6" Industrial Panel PCs designed specifically for automation and H2M communication in industry or buildings. For a low power consumption, which allows a power supply exclusively via PoE LAN, the fanless industrial computer use efficient hardware such as ARM CPU. As a processor, the HMI-S Series offers a choice between a 1 GHz dual or quad core ARM Cortex-A9 and a combined ARM Cortex-A72/A-53 quad core CPU with 2.0 GHz clock frequency. The memory consists of a 2 GB to 8 GB DDR3L RAM, resulting in a total scalable performance for an optimized cost-benefit factor. As the primary storage medium, the Fanless Panel PC uses a 16 GB eMMC flash drive, whose capacity the user can extend through a Micro SD for a user data. With its flexibility and modular extension for individual access control, the Low Energy Panel PC range provides an excellent basis for intelligent systems for central or local processes. The following configurations are still available: Model Display CPU W07IB3S-PCO1AC-POE 7" TFT LCD, 1024 x 600, 1000 cd/m2, P-CAP Multi-Touch Intel Celeron Bay Trail-M N2930 1.83GHz W07IB3S-PCO1-POE 7" TFT LCD, 1024 x 600, 1000 cd/m2, P-CAP Multi-Touch Intel Celeron Bay Trail-M N2930 1.83GHz W07FA3S-PCO1-POE 7" TFT LCD, 1024 x 600, 1000 cd/m2, P-CAP Multi-Touch Freescale Cortex A9 i.MX6 Dual Core 1GHz W07FA3S-PCO1AC-POE 7" TFT LCD, 1024 x 600, 1000 cd/m2, P-CAP Multi-Touch Freescale Cortex A9 i.MX6 Dual Core 1GHz W10IB3S-PCH2-POE 10.1" TFT LCD, 1280 x 800, 350 cd/m2, P-CAP Multi-Touch Intel Celeron Bay Trail-M N2930 1.83GHz W10IB3S-PCH2AC 10.1" TFT LCD, 1280 x 800, 350 cd/m2, P-CAP Multi-Touch Intel Celeron Bay Trail-M N2930 1.83GHz W10FA3S-PCH2AC 10.1" TFT LCD, 1280 x 800, 350 cd/m2, P-CAP Multi-Touch Freescale Cortex A9 i.MX6 Dual Core 1GHz W10FA3S-PCH2-POE 10.1" TFT LCD, 1280 x 800, 350 cd/m2, P-CAP Multi-Touch Freescale Cortex A9 i.MX6 Dual Core 1GHz R15IB3S-PCC3-POE 15" TFT LCD, 1024 x 768, 250 cd/m2, P-CAP Multi-Touch Intel Celeron Bay Trail-M N2930 1.83GHz R15FA3S-PCC3-PoE 15" TFT LCD, 1024 x 768, 250 cd/m2, P-CAP Multi-Touch Freescale Cortex A9 i.MX6 Dual Core 1GHz As a touch screen, the Panel PCs rely on a projected-capacitive technology with multi-touch for at least four points of contact. Regardless of the version of the processor, models with a diagonal of 7'' to 10.1'' to 15 ' are available, which use a resolution between 1024 x 600 pixels and 1280 x 800 pixels. For outdoor locations and environments with direct sunlight there are bright variants, which offer a controllable luminescence up to 1000 cd/m² instead of a brightness of 350 cd / m². The interfaces are largely standardized and include connections for USB as well as USB OTG, Serial COM RS232/422/485 and in many cases CAN bus on every Industrial Panel PC of the HMI-S Series. Options include a 2 MP front camera for video telephony or an HF RFID reader for wireless information transmission and user identification. A feature of the energy-efficient product line is the possibility of external power supply via PoE IEEE 802.3at via the Gigabit Ethernet LAN port. This allows a quick and comfortable installation with minimal cable routing. The front panel, including the touch screen, is sealed in accordance with the international protection level IP65, to prevent the penetration of liquids, for example during cleaning. The true flat design of screen and body meets both aesthetic requirements in representative spaces and the requirements for installation in a small space. Typical scenarios for the use of the HMI-S Series consist of automation of industrial production, buildings or rooms, local or centralized H2M communication and extends to distributed infotainment or user-based access control, for example as point-of-sale (PoS).
