R15FA3S-EHC3

R15FA3S-EHC3

Winmate
SKU: 56536500

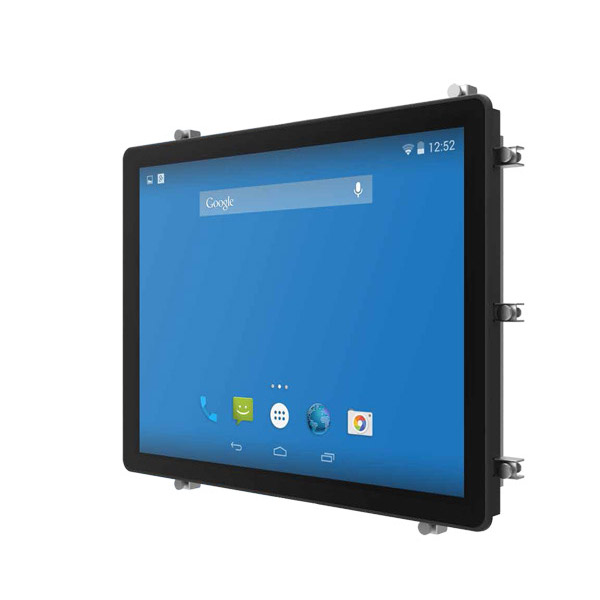

15" Fanless Panel PC, E Series, IP65 Front, 1024x768, 300 cd/m2, NXP i.MX6 Dual-Core 1.0GHz CPU, 1GB RAM, 16GB eMMC, 1xMicroHDMI Opt., 1xCOM, 1xCAN, 1xMiniUSB, 1xUSB OTG, 1xUSB 2.0, 1xPoE LAN, 1xMicroSD, 1xmPCIe, 12VDC-in w/ PSU
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Diagonal
15 "
Maximum resolution
1024x600 Dots
Brightness
300 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex A9
Max CPU frequency
1.83 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Maximum Memory
2 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
1st Storage Capacity
8 GB
Connectors
Connectors
2xUSB, DC Input, Micro HDMI
System Power Input
Input Voltage DC
12..12 V
Dimensions and weight
Width
276.7 mm
Height
352.5 mm
Depth
56.3 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
3 kg
Gross Weight
4 kg
