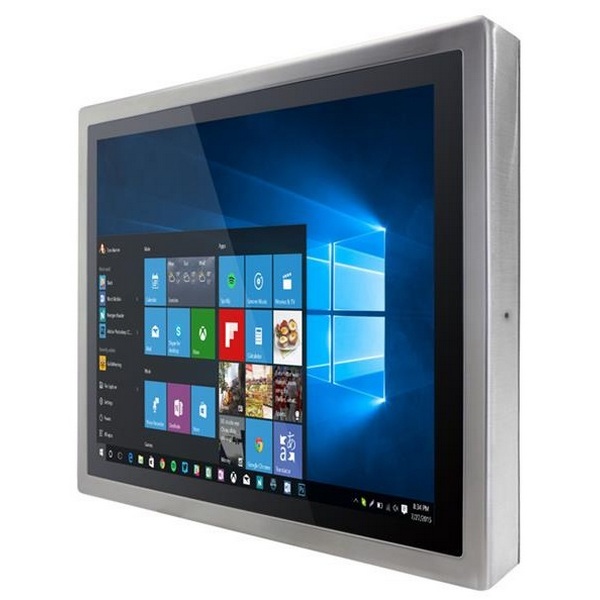

R10L100-SPT2

R10L100-SPT2

Winmate
SKU: 07355100
Industrial Stainless 10.4" LCD Display, Full IP65, 1024x768, front panel stainless steel, VGA, Projective Capucitive Touch (USB) external power adapter 12V DC 100-240V AC, power supply 12V DC (M12)
Price on request
Available
Available

Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Material Front Side (Panel)
Stainless Steel Front Panel
Display
Display Type
LCD
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
Connectors
Connectors
3xM12
System Power Input
Input Voltage DC
12..12 V
Power Consumption
26 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
-10..55 °C
Dimensions and weight
Width
229.5 mm
Height
256 mm
Depth
49.9 mm
Dimensions
Net Weight
3.8 kg
Gross Weight
5 kg
