R10IH3S-PPT2

R10IH3S-PPT2

Winmate
SKU: 07016000

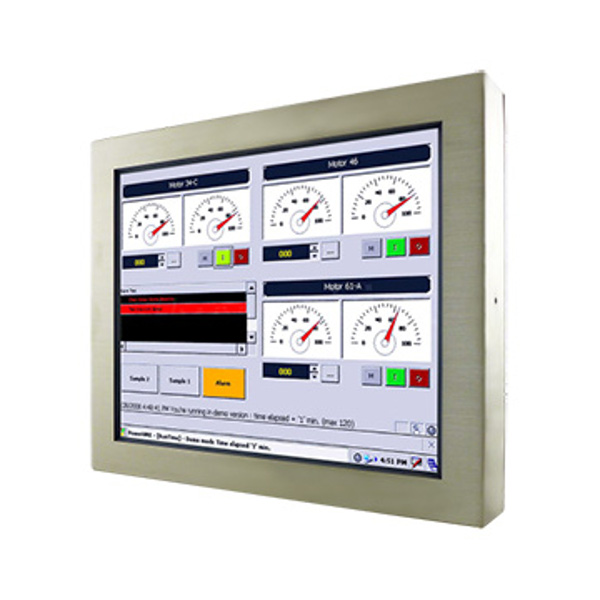

10.4" P-Cap Panel Mount Panel PC, Projective-Capasitive TS, Intel Core i5-5200U 2.2GHz, Intel QM87, 4GB DDR3L, 64GB mSATA SSD, VGA, HDMI, 2xGB LAN, 2xCOM, 2xUSB 3.0, Audio, no OS
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Diagonal
10.4 "
Maximum resolution
1024x600 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-5200U
Max CPU frequency
2.7 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
16 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
2
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Connectors
Connectors
HDMI, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
284 mm
Height
252 mm
Depth
69 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
2.39 kg
Gross Weight
3 kg
