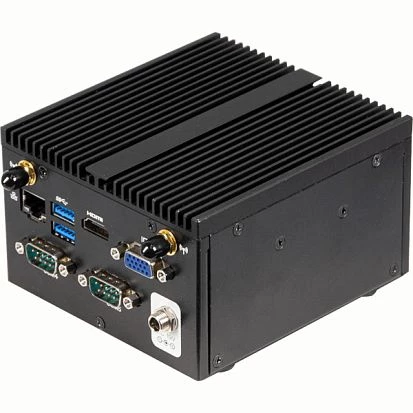

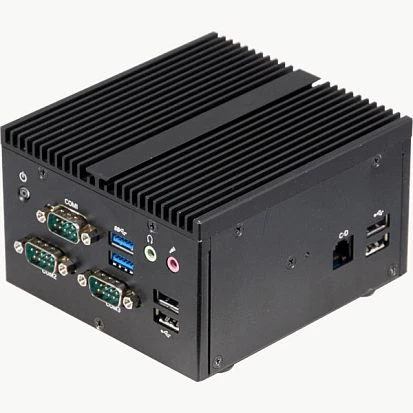

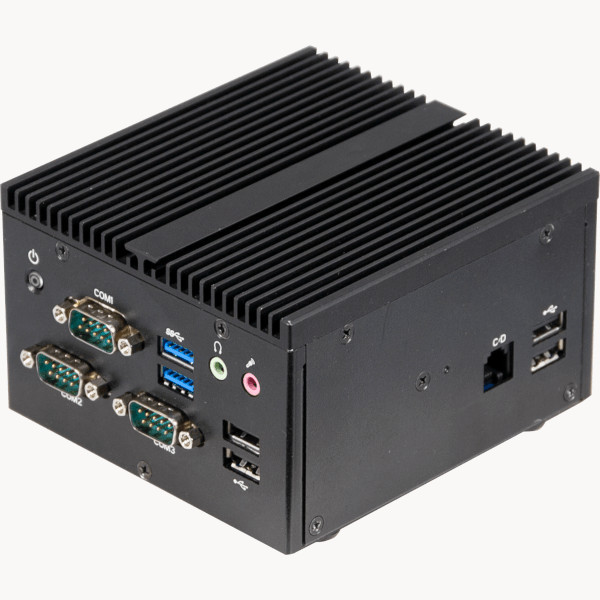

QBiX2-GLKA5005H-A1

QBiX2-GLKA5005H-A1

GIGAIPC
SKU: 57064100
Fanless Embedded PC, Intel Pentium J5005 1.5 GHz CPU, up to 8GB DDR4, 1xVGA, 1xHDMI, 1xGbit LAN, 4xUSB 3.0, 2xUSB 2.0, 5xCOM, 1x2.5" HDD bay, 1x M.2, Audio
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
СPU Generation/Family
Gemini Lake
Processor Installed
Intel Pentium J5005
Max CPU frequency
2.8 GHz
Memory
Form-factor
DDR4
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics 605
Ethernet
Controller Type
Realtek RTL8111HS
10/100/1000 Mbit/s
1
Interfaces
COM Total
5
USB Total
8
USB 2.0
4
USB v3.x
4
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
1
Connectors
Connectors
DB15 VGA, HDMI, RJ11, RJ45 Ethernet, Audio Out, DC Input, Audio Mic
System Power Input
Input Voltage DC
19 V
Power Consumption
65 W
Power Supply
Type of Power Supply
DC-DC
Output Power
65 W
Dimensions and weight
Width
118 mm
Height
74.4 mm
Depth
109.4 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Dimensions
Net Weight
3.2 kg
Gross Weight
4 kg
