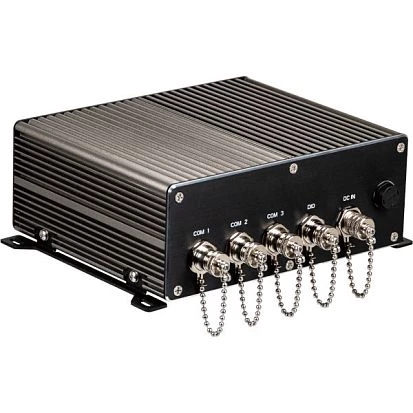

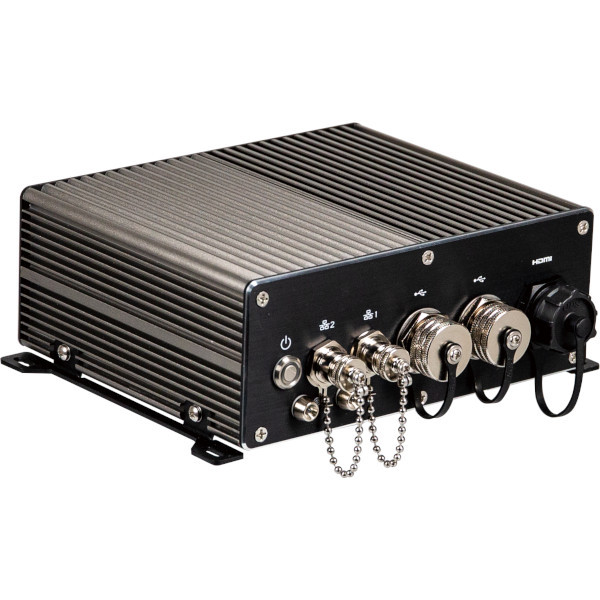

QBiX-WP-WHLA8265H-A1

QBiX-WP-WHLA8265H-A1

GIGAIPC
SKU: 57347600
Industrial Waterproof Embedded PC, Full IP67, Intel Core i5-8265U CPU, 8GB DDR4 RAM, 1xHDMI (IP67), 2xUSB (IP67), M12 connectors (2xGbE, 3xCOM, 4xUSB, 1x8-bit GPIO), M.2 SSD 256GB, 1xMini PCIe, 2xM.2, Audio, 9-36VDC-in M12 Port, -20..70C Wide Temp.
Price on request
Available
Available

Construction
Protection Level of Chassis
IP67
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i5-8265U
Socket
FCBGA 1528
Max CPU frequency
3.9 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 620
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
1
USB Total
2
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage External
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
HDMI, 2xUSB, 7xM12, DB15 GPIO
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
188 mm
Height
72 mm
Depth
155 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
IEC 60068-2-64, 3 Grms, random, 5..500 Hz, 1 hr/Per Axis, With SSD/M.2 2280
Shock
IEC 60068-2-27, 50G, half sine, 11ms duration, With SSD
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
Construction
Protection Level of Chassis
IP67
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i5-8265U
Socket
FCBGA 1528
Max CPU frequency
3.9 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 620
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
1
USB Total
2
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage External
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
HDMI, 2xUSB, 7xM12, DB15 GPIO
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
188 mm
Height
72 mm
Depth
155 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
IEC 60068-2-64, 3 Grms, random, 5..500 Hz, 1 hr/Per Axis, With SSD/M.2 2280
Shock
IEC 60068-2-27, 50G, half sine, 11ms duration, With SSD
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
Construction
Protection Level of Chassis
IP67
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i5-8265U
Socket
FCBGA 1528
Max CPU frequency
3.9 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 620
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
1
USB Total
2
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage External
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
HDMI, 2xUSB, 7xM12, DB15 GPIO
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
188 mm
Height
72 mm
Depth
155 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
IEC 60068-2-64, 3 Grms, random, 5..500 Hz, 1 hr/Per Axis, With SSD/M.2 2280
Shock
IEC 60068-2-27, 50G, half sine, 11ms duration, With SSD
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
Construction
Protection Level of Chassis
IP67
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i5-8265U
Socket
FCBGA 1528
Max CPU frequency
3.9 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 620
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
1
USB Total
2
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage External
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
HDMI, 2xUSB, 7xM12, DB15 GPIO
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
188 mm
Height
72 mm
Depth
155 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
IEC 60068-2-64, 3 Grms, random, 5..500 Hz, 1 hr/Per Axis, With SSD/M.2 2280
Shock
IEC 60068-2-27, 50G, half sine, 11ms duration, With SSD
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg

Documentation
QBiX-WP-WHLA8265H-A1-Datasheet QBiX-WP-WHLA8265H-A1 User Manual
Documentation
QBiX-WP-WHLA8265H-A1-Datasheet QBiX-WP-WHLA8265H-A1 User Manual
Documentation
QBiX-WP-WHLA8265H-A1-Datasheet QBiX-WP-WHLA8265H-A1 User Manual
Documentation
QBiX-WP-WHLA8265H-A1-Datasheet QBiX-WP-WHLA8265H-A1 User Manual
