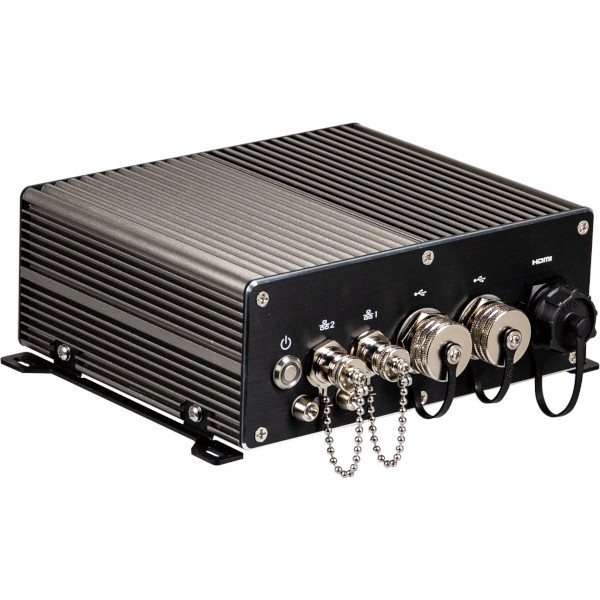

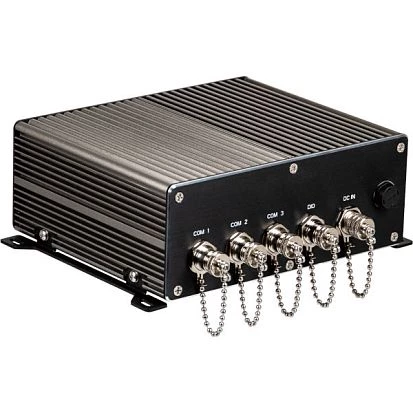

QBiX-WP-APLA3940H-A1

QBiX-WP-APLA3940H-A1

GIGAIPC
SKU: 57347900
Industrial Waterproof Embedded PC, Full IP67, Intel Atom x5-E3940 CPU, 8GB DDR3L RAM, 1xHDMI (IP67), 2xUSB (IP67), M12 connectors (2xGbE, 3xCOM, 1x8-bit GPIO), M.2 SSD 256GB, 1xMini PCIe, 1xM.2 , SATA3, Audio, 9-36VDC-in M12 Port, -20..80C Wide Temp.
Price on request
Available
Available

CPU
CPU Support Type
Atom
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 500
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
1
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage External
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Connectors
Connectors
HDMI, 2xUSB, 2xM12, DB15 GPIO
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
188 mm
Height
72 mm
Depth
155 mm
Operating Conditions
Operating Temperature
-20..80 °C
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
