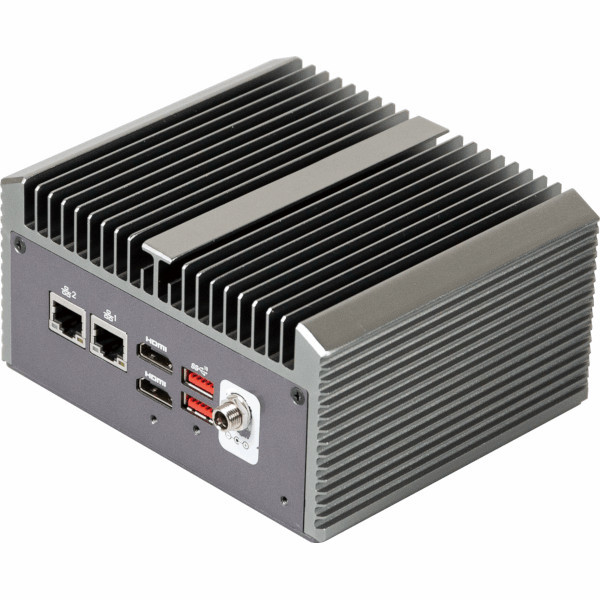

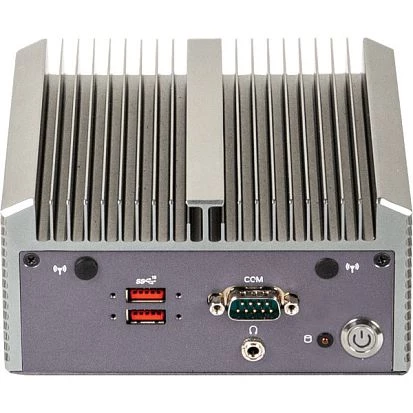

QBiX-WHLA8145H-A1

QBiX-WHLA8145H-A1

GIGAIPC
SKU: 57081000
Fanless Embedded PC, Intel Core i3-8145UE 2.2GHz CPU, 2xDDR4 SO-DIMM, 2xHDMI, 2xGbE, 4xUSB 3.1 Gen2, 1xRS-232/422/485, 1x2.5" drive, M.2 2280, M.2 2230, 9..36 DC-In
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i3-8145UE
Socket
CPU onboard
Max CPU frequency
3.9 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 620
Ethernet
Controller Type
Intel i219-V 10/100/1000 Mbps, Realtek RTL8111HS
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
9 V
Power Supply
Type of Power Supply
DC-DC
Output Power
90 W
Dimensions and weight
Width
138 mm
Height
74.2 mm
Depth
118 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.36 kg
Gross Weight
2.06 kg
