QBiX-Pro-TGLB1115G4EH-A1

QBiX-Pro-TGLB1115G4EH-A1

GIGAIPC
SKU: 57347500

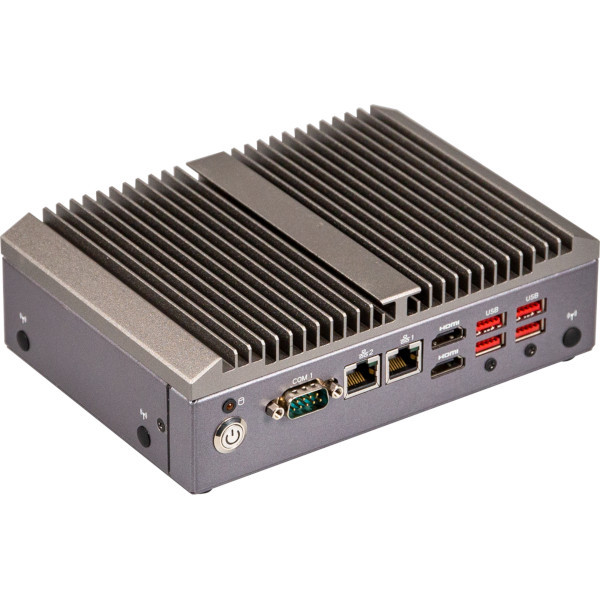

Fanless Industrial Embedded PC, Intel Core i3-1115G4E CPU TDP 28W, 2xDDR4 3200MHz SO-DIMM up to 64GB, 2xGbE, 2xHDMI, 6xUSB, 2xCOM, 1xMini PCIe, 2xM.2, Audio, 9..36V DC-In, 0..50C
Price on request
Available
Available

CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i3-1115G4E
Socket
FCBGA 1449
Max CPU frequency
3.9 GHz
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage External
1
Extension Slots
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes
Connectors
Connectors
3xDB9, 2xHDMI, 2xRJ45, 6xUSB, DB15 GPIO
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
505 mm
Height
333 mm
Depth
231 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Shock
IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.5 kg
Gross Weight
3 kg
