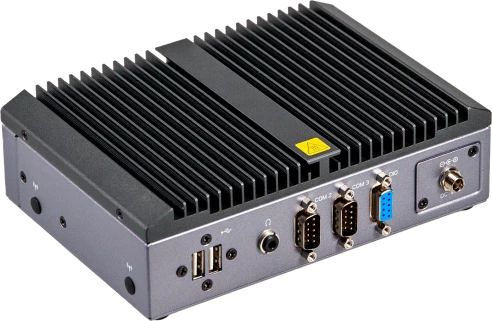

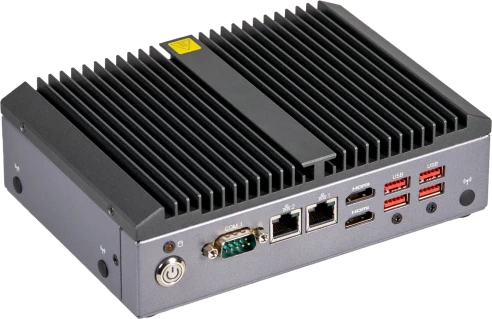

QBiX-Pro-RPLA1355H-A2
GIGAIPC
SKU: 57818200
Fanless Embedded System, Intel 13th Gen Core i7-1355U 5GHz CPU, Up to 64GB DDR4 RAM, 2xHDMI, 2x2.5GbE LAN, 4xUSB 3.2, 2xUSB 2.0, 3xRS232/422/485, 1x8-bit GPIO, 1x2.5" Drive Bay, 1xMini PCIe, SIM, 2xM.2, Audio, 12-36VDC-in Jack with PSU, 0..50C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i7
CPU Support Type
Core i7
Max CPU frequency
5 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM 260-pin
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
2xHDMI
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC269
Drive interfaces
SATA 3
1
M.2
2
Storage Cage
Number Of Cage External
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Connectors
Connectors
3xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, DB9 GPIO
System Power Input
Input Voltage DC
12..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 11
Dimensions and weight
Width
178 mm
Height
125 mm
Depth
52.7 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Vibration
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.8 kg
Gross Weight
2.2 kg
