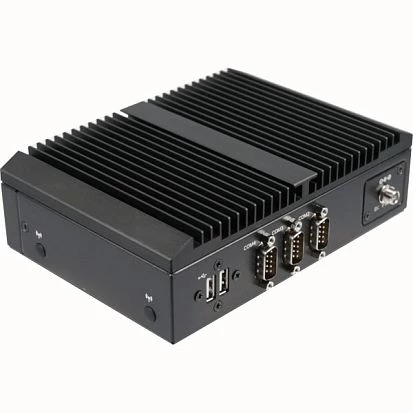

QBiX-Pro-KBLB7200-A2

QBiX-Pro-KBLB7200-A2

GIGAIPC
SKU: 57080600
Fanless Embedded PC QBiX-Pro, Intel Core i5-7200U 2.5 GHz CPU, 2x DDR4 SO-DIMM, 1xDP, 1xHDMI 2.0a, 2xGbE, 4xUSB 3.0, 2xUSB 2.0, 3xRS-232, 1x RS-232/422/485, M.2 B/M Key, M.2 E-Key, 9-36V DC-In power jack input
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Socket
CPU onboard
Max CPU frequency
3.1 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 620
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, Display Port, DB9 Male, 2xUSB (4-pin), 3xDB9 Male
System Power Input
Input Voltage DC
9 V
Power Consumption
65 W
Power Supply
Type of Power Supply
DC-DC
Output Power
65 W
Dimensions and weight
Width
178 mm
Height
52.7 mm
Depth
125 mm
Operating Conditions
Operating Temperature
0..40 °C
Vibration
IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Shock
IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Dimensions
Net Weight
1.15 kg
Gross Weight
1.5 kg
