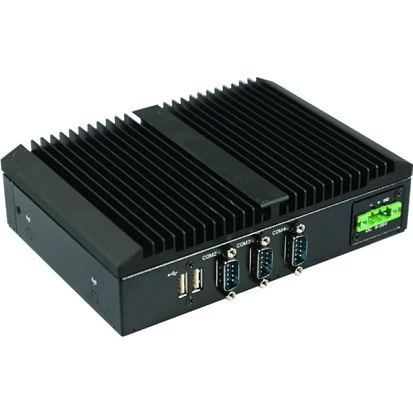

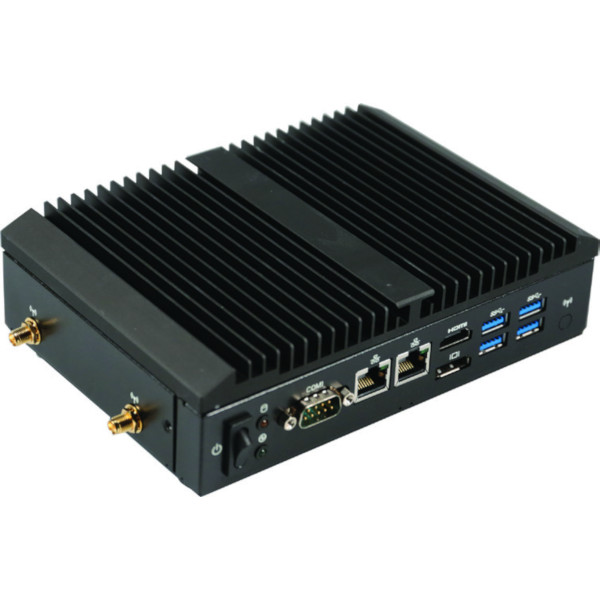

QBiX-Pro-KBLB7100-A1

QBiX-Pro-KBLB7100-A1

GIGAIPC
SKU: 56990100
Fanless Embedded PC QBiX-Pro, Intel Core i3-7100U 2.4 GHz CPU, 2x DDR4 SO-DIMM, 1xDP, 1xHDMI 2.0a, 2xGbE, 4xUSB 3.0, 2xUSB 2.0, 3xRS-232, 1x RS-232/422/485, M.2 B/M Key, M.2 E-Key, 9-36V DC-In
Price on request
Available
Available

CPU
Processor Installed
Intel Core i3-7100U
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Extension Slots
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, HDMI, 2xRJ45, 6xUSB, DC Input, Display Port
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
178 mm
Height
52.7 mm
Depth
125 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.15 kg
Gross Weight
1.5 kg
