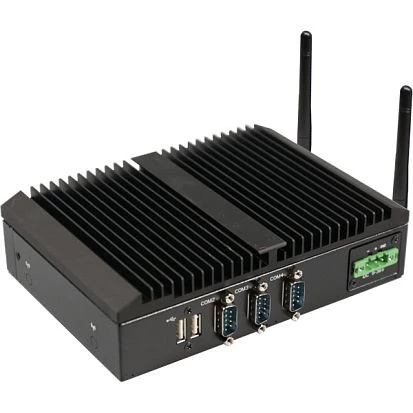

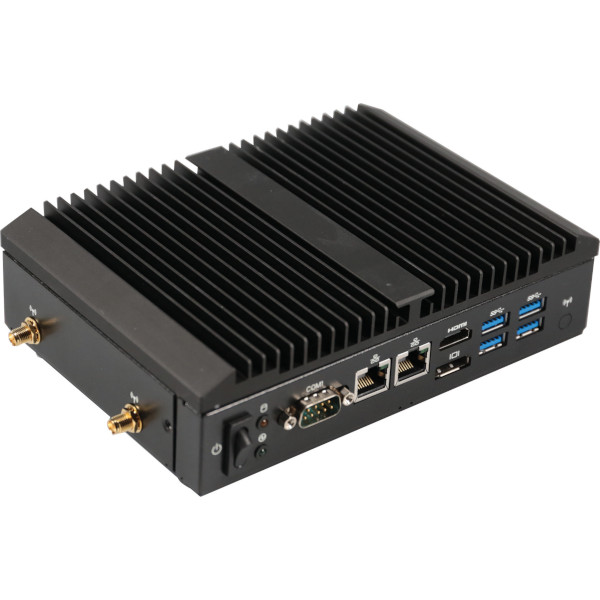

QBiX-Pro-KBLB3965H-A1

QBiX-Pro-KBLB3965H-A1

GIGAIPC
SKU: 57034300
Fanless Embedded PC QBiX-Pro, Intel Celeron 3965U 2.2 GHz CPU, 2x DDR4 SO-DIMM, 1xDP, 1xHDMI 2.0a, 2xGbE, 4xUSB 3.0, 2xUSB 2.0, 3xRS-232, 1x RS-232/422/485, 1x2.5" HDD bay, M.2 B/M Key, M.2 E-Key, 9-36V DC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Celeron 3965U
Max CPU frequency
2.2 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 610
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 6xUSB, Line Out, Display Port, GPIO (terminal block)
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
178 mm
Height
52.7 mm
Depth
125 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Dimensions
Net Weight
1.15 kg
Gross Weight
1.5 kg

Documentation
QBiX-Pro-KBLB3965H-A1-Datasheet
