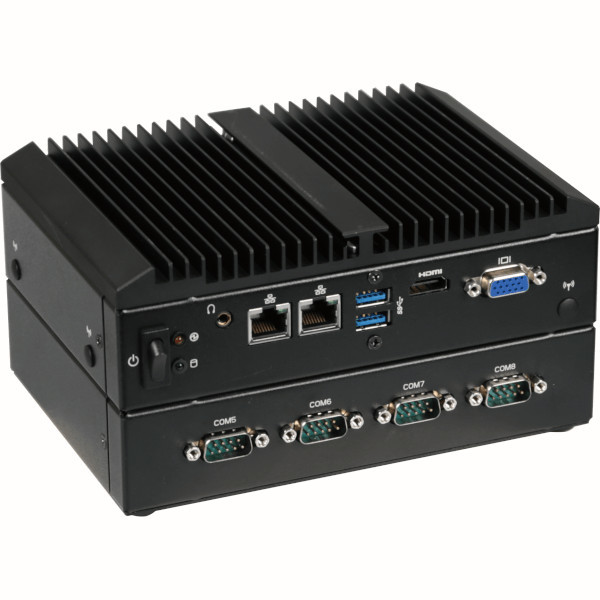

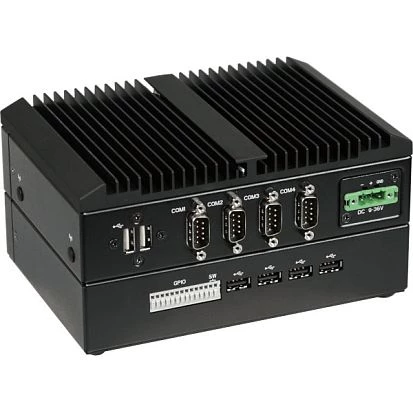

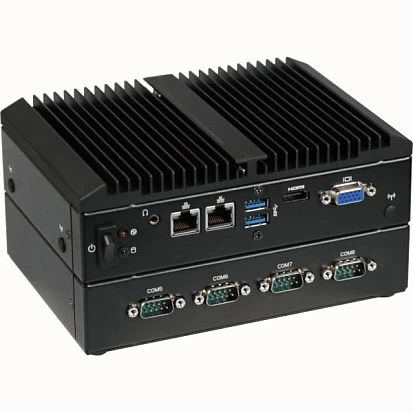

QBiX-Pro-APLB4200H-A1
GIGAIPC
SKU: 57064300
Fanless Embedded PC QBiX-Pro, Intel Pentium N4200 1.1 GHz CPU, 2x DDRL3 SO-DIMM, 1xVGA, 1xHDMI, 2xGbit LAN, 4xUSB, 4xCOM, 1xM.2, 1xMiniPCIe, 9-36V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Pentium N4200
Socket
CPU onboard
Max CPU frequency
2.5 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 505
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Connectors
Connectors
DB15 VGA, HDMI, RJ45 Ethernet, Audio Out
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
178 mm
Height
52.7 mm
Depth
125 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Dimensions
Net Weight
1.15 kg
Gross Weight
1.5 kg
Construction
