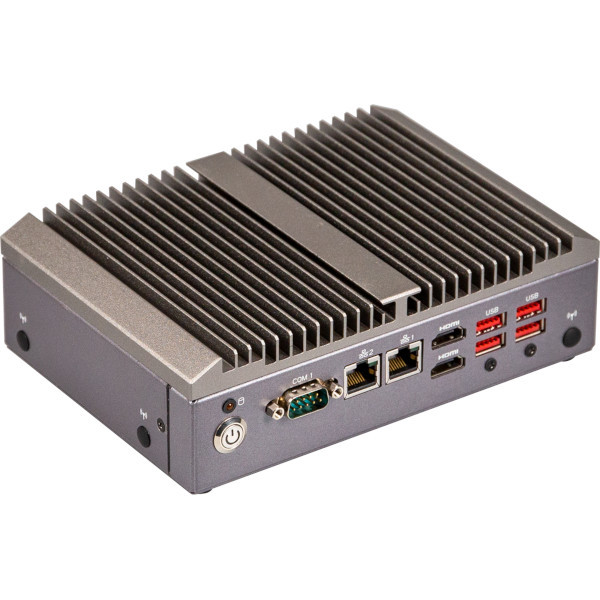

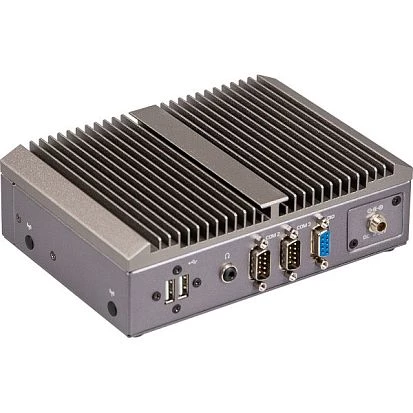

QBiX-Pro-ADLA1215EH-A2

QBiX-Pro-ADLA1215EH-A2

GIGAIPC
SKU: 57704800
Fanless Embedded System, Intel 12th Gen Core i3-1215UE 1.2GHz CPU, Up to 64GB DDR4 RAM, 2xHDMI, 2x2.5GbE LAN, 4xUSB 3.2, 2xUSB 2.0, 3xRS232/422/485, 1x8-bit GPIO, 1x2.5" Drive Bay, 1xMini PCIe with SIM, 2xM.2, Audio, 12-36VDC-in Jack with PSU, 0..50C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i3-1215UE
Socket
CPU onboard
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Ethernet
Controller Type
Intel i226V
2,5 Gbit/s
2
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
6
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
3xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, GPIO (terminal block)
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
135 W
Dimensions and weight
Width
178 mm
Height
125 mm
Depth
52.7 mm
Operating Conditions
Vibration
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280; Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.8 kg
Gross Weight
2.2 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i3-1215UE
Socket
CPU onboard
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Ethernet
Controller Type
Intel i226V
2,5 Gbit/s
2
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
6
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
3xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, GPIO (terminal block)
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
135 W
Dimensions and weight
Width
178 mm
Height
125 mm
Depth
52.7 mm
Operating Conditions
Vibration
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280; Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.8 kg
Gross Weight
2.2 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i3-1215UE
Socket
CPU onboard
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Ethernet
Controller Type
Intel i226V
2,5 Gbit/s
2
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
6
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
3xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, GPIO (terminal block)
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
135 W
Dimensions and weight
Width
178 mm
Height
125 mm
Depth
52.7 mm
Operating Conditions
Vibration
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280; Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.8 kg
Gross Weight
2.2 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i3-1215UE
Socket
CPU onboard
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Ethernet
Controller Type
Intel i226V
2,5 Gbit/s
2
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
6
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
3xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, GPIO (terminal block)
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
135 W
Dimensions and weight
Width
178 mm
Height
125 mm
Depth
52.7 mm
Operating Conditions
Vibration
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280; Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.8 kg
Gross Weight
2.2 kg

Documentation
QBiX-Pro-ADLA1215H-A2 Datasheet QBiX-Pro-ADLA-A2 Series User Manual
Documentation
QBiX-Pro-ADLA1215H-A2 Datasheet QBiX-Pro-ADLA-A2 Series User Manual
Documentation
QBiX-Pro-ADLA1215H-A2 Datasheet QBiX-Pro-ADLA-A2 Series User Manual
Documentation
QBiX-Pro-ADLA1215H-A2 Datasheet QBiX-Pro-ADLA-A2 Series User Manual
