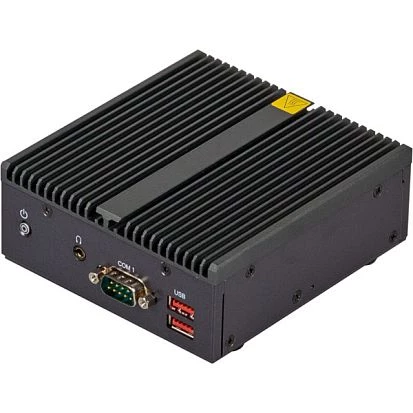

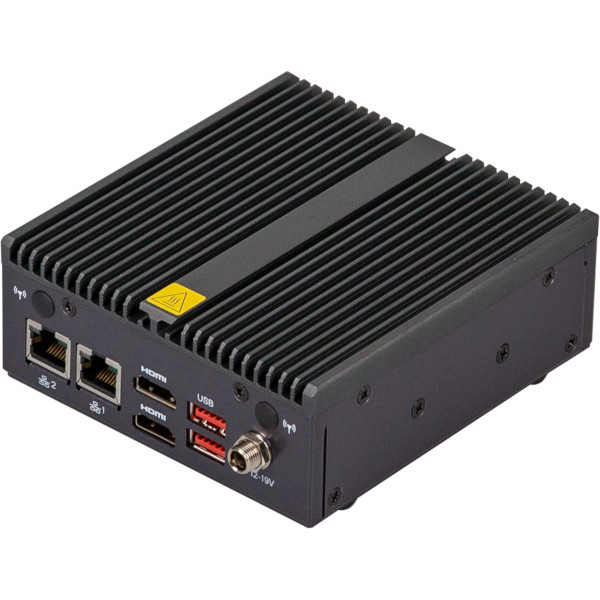

QBiX-Plus-EHLA6412-A1

QBiX-Plus-EHLA6412-A1

GIGAIPC
SKU: 57486400
Fanless Embedded PC, Intel Celeron J6412 2.0GHz CPU, Up to 32GB DDR4 SODIMM RAM, 3xHDMI, 2xGbE LAN, 4xUSB 3.2, 1xRJ45 RS232, 1xMicroSD slot, 1xM.2 2280, 1xM.2 2230, 1xM.2 3042 with SIM slot, Audio, 12-19VDC-in Jack with PSU, 0..50C
Price on request
Available
Available

CPU
Processor Installed
Intel Celeron J6412
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Intel UHD Graphics
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
USB Total
4
USB v3.x
4
Extension Slots
M.2
2
Connectors
Connectors
DB9, 2xHDMI, 2xRJ45, 4xUSB
System Power Input
Input Voltage DC
12 V
Power Supply
Output Power
65 W
Dimensions and weight
Width
118 mm
Height
44.4 mm
Depth
109.4 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.5 kg
Gross Weight
1.8 kg
