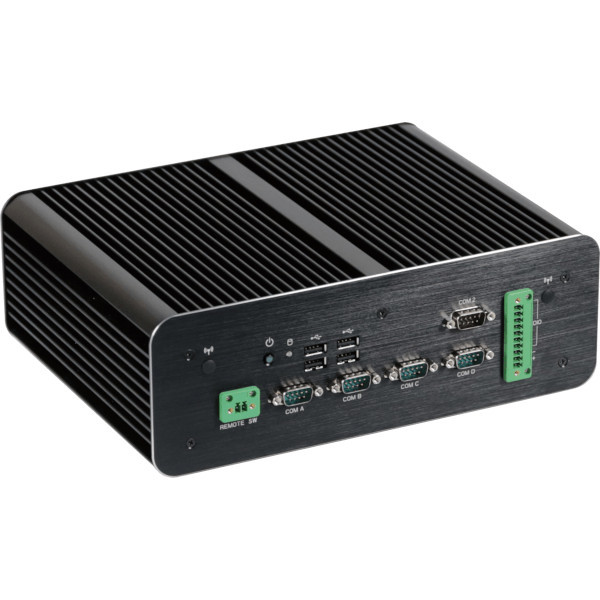

QBiX-JWB-SKYA110H-A1

QBiX-JWB-SKYA110H-A1

GIGAIPC
SKU: 57077200
Industrial Embedded PC QBiX Jumbo, Support for Intel Core i7/i5/i3 6/7th Gen. CPUs, H110 Chipset, 2xDDR4 SO-DIMM, 1xVGA,1xHDMI,1xDP,2xGbit LAN, 8xUSB, 6xCOM, 2.5" HDD bay, M.2 2280 SATA Key B/M, 1xMiniPCIe, GPIO, Terminal Block DC-In (+12V/+19V/+24V)
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232/422/485
5
USB Total
8
USB 2.0
6
USB v3.x
2
Digital Input-Output
GPIO
Yes
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
6xDB9, DB15 VGA, LVDS, HDMI, 2xRJ45 Ethernet, 2xUSB, Audio (in/out/Mic), Display Port, DC input (terminal block), GPIO (terminal block), 2xUSB (4-pin), 4xUSB (4-pin)
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
DC-DC
Dimensions and weight
Width
273 mm
Height
91 mm
Depth
203 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.2 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
