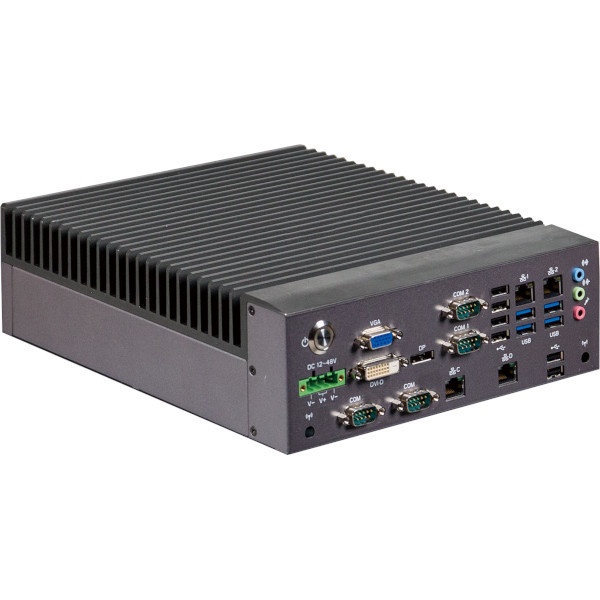

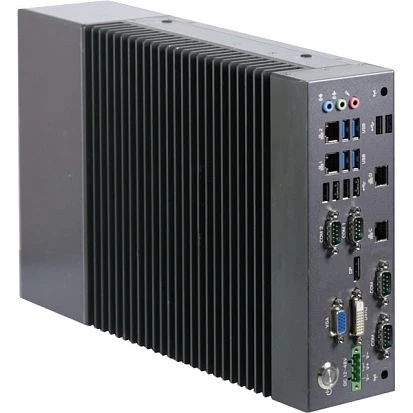

QBiX-JMB-CMLA47EH-A1

QBiX-JMB-CMLA47EH-A1

GIGAIPC
SKU: 57576900
Fanless Embedded PC, Intel 10th Gen Core i9/i7/i5/i3 CPU, Intel Q470, Up to 64GB DDR4 RAM, 4xGbE LAN, DVI-D, VGA, DP, Audio, 4x2.5" Drive Bay, 2xM.2, 1xMini-PCIe, 4xUSB 3.2, 6xUSB 2.0, 2xRS-232/422/485, 2xRS-232, 12..48VDC-in Full Range, -20..50C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
СPU Generation/Family
Comet Lake
Socket
LGA1200
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics 630
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
10
USB 2.0
6
Extension Slots
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, DVI-D, DB15 VGA, 4xRJ45 Ethernet, 10xUSB, Audio (in/out/Mic), Display Port, DC input (terminal block)
Dimensions and weight
Width
224 mm
Height
77.7 mm
Depth
256.1 mm
Operating Conditions
Vibration
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280; Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
5 kg
