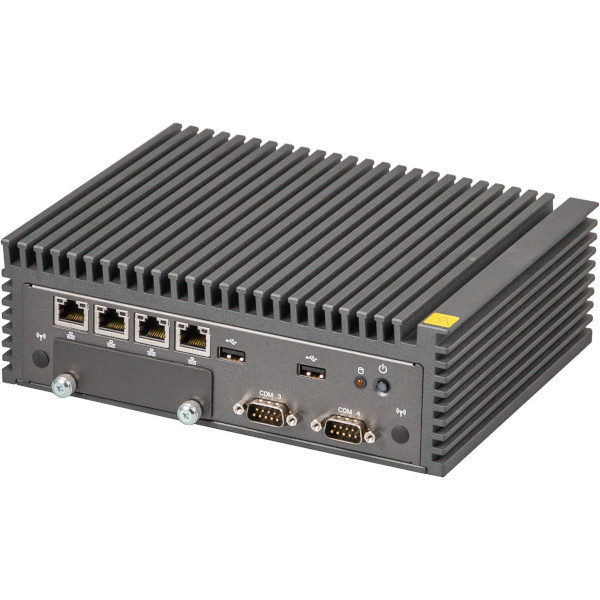

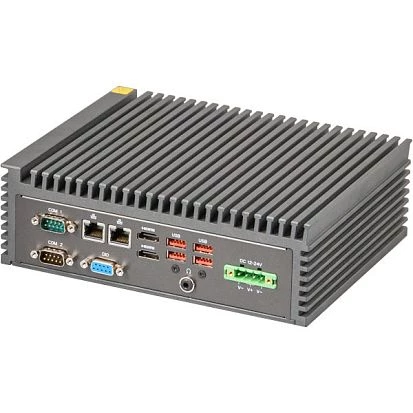

QBiX-Expert-TGLA1135G7H-A1

QBiX-Expert-TGLA1135G7H-A1

GIGAIPC
SKU: 57727000
Fanless Embedded System, Intel 11th Gen Core i5-1145G7 2.6GHz CPU, Up to 64GB DDR4 RAM, 2xHDMI, 2xGbE LAN, 4xGbE PoE LAN, 4xUSB 3.2, 2xUSB 2.0, 4xRS232/422/485, 1x8-bit GPIO, 1x2.5" Drive Bay, 1xMini-PCIe, SIM, 2xM.2, Audio, 12-24VDC-in, 0..50C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
CPU onboard
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
6
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, 2xHDMI, 6xRJ45 Ethernet, 6xUSB, Line In, Line Out, DC input (terminal block), DB9 DIO
Dimensions and weight
Width
210.36 mm
Height
67 mm
Depth
165 mm
Operating Conditions
Vibration
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280; Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
