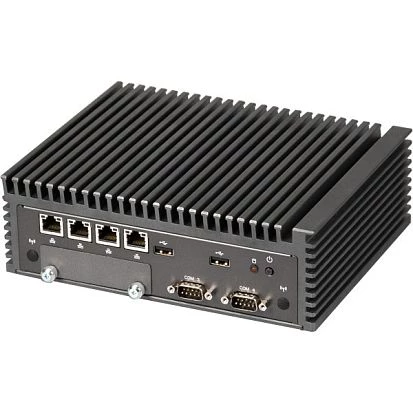

QBiX-Exp-TGLA1135G7H-A1

QBiX-Exp-TGLA1135G7H-A1

GIGAIPC
SKU: 57398500
Industrial Fanless system Intel Core i5-1135G7, 2xDDR4 SO-DIMM up to 64 GB, 2xGbE LAN, 4xPoE GbE LAN, 2xHDMI, 6xUSB, 4xCOM, 1x2280 M.2 M-Key, 1x2230 M.2 E-Key, 1xFull-size Mini PCIe, GPIO, Audio, 0..50 C, 9..48VDC (non PoE), 12..24VDC (PoE support)
End-of-life product

Construction
Mounting Configuration
Wall
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Graphic
Graphic Controller
Intel Iris Xe Graphics
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes
Connectors
Connectors
4xDB9, 2xHDMI, 6xUSB, Mic In, Line Out, 6xRJ45, DB15 GPIO
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
210.36 mm
Height
65 mm
Depth
165 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.36 kg
Gross Weight
2.06 kg
