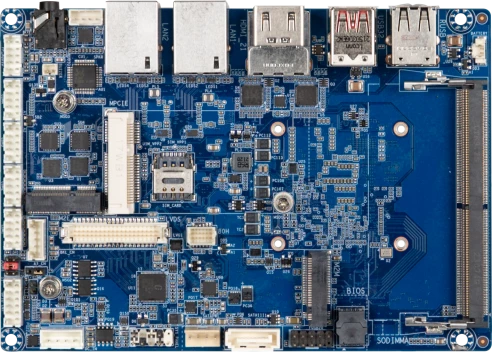

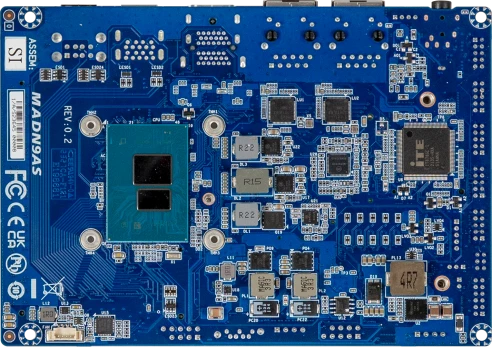

QBiP-N97A

QBiP-N97A

GIGAIPC
SKU: 57818700
3.5" Embedded SBC, Intel N97 3.6GHz CPU, Up to 16GB DDR5 RAM, 2xHDMI, LVDS, 2xGbE LAN, 1xSATA, 2xRS232, 2xRS232/422/485, 2xUSB 3.2, 2xUSB 2.0, 2xUSB 2.0 header, 2xM.2, 1xMiniPCIe, SIM, 1x8-bit GPIO, Audio, 12-36VDC-in, 0..+60C
Price on request
Available
Available

System Architecture
Form Factor
3.5" Half-Size SBC
CPU
Processor Installed
Intel N97
Socket
CPU onboard
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Interfaces
2xHDMI
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
SIM Card slots
Yes, 1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block)
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-90%
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
