QBiP-8145A

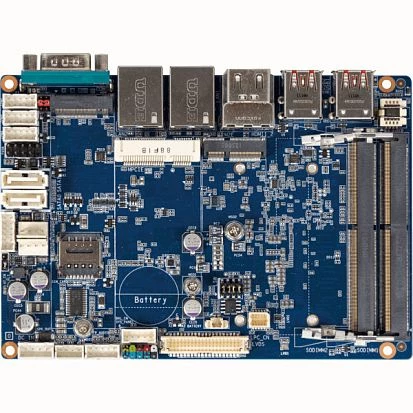

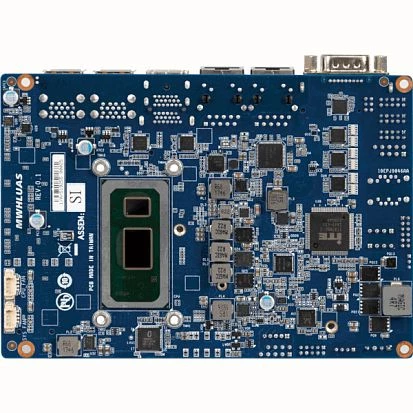

QBiP-8145A

GIGAIPC
SKU: 57085500
3.5" SBC Board, Intel Core i3-8145UE CPU 1.8GHz, 2xDDR4 2400MHz SO-DIMM, max 32 GB, 2xGBe 2xHDMI, LVDS, 2xM.2, Mini-PCIe, 2xSATA 3.0, GPIO, 4xCOM, 2xUSB 2.0, 4xUSB 3.1 Gen2
Price on request
Available
Available

System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i3-8145UE
Socket
CPU onboard
Max CPU frequency
3.9 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 620
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC269
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
2xSATA 3, 2xUSB 2.0, 4-pin (12V DC CPU), 10-pin Audio, GPIO, 40-pin LVDS
Connectors
DB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.15 kg
Gross Weight
0.53 kg
