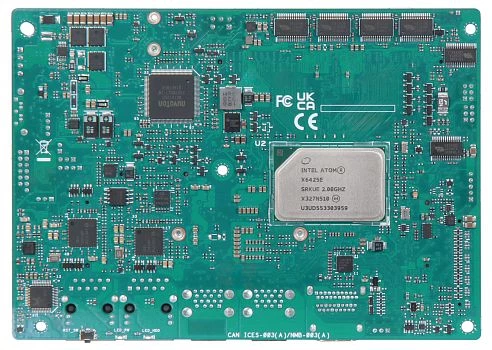

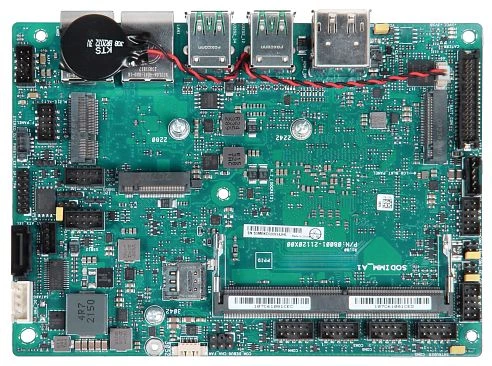

PEB-2274

PEB-2274

Portwell
SKU: 11662100
3.5' Intel Atom x6425E, DDR4 RAM up 32GB, DP, HDMI, LVDS, 2xLAN, 6xCOM, 5xUSB, M.2 E-Key, M.2 B-Key, M.2 M-Key, Audio, GPIO, -40..+85C, 9~36VDC
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6425E
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Interfaces
DisplayPort, LVDS, HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
5
USB v3.x
4
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
HDMI, 2xRJ45, 4xUSB, Display Port
Software
Operating System Compatibility
Windows IoT Enterprise 10, Windows 10
Dimensions and weight
Width
146 mm
Length
105 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
