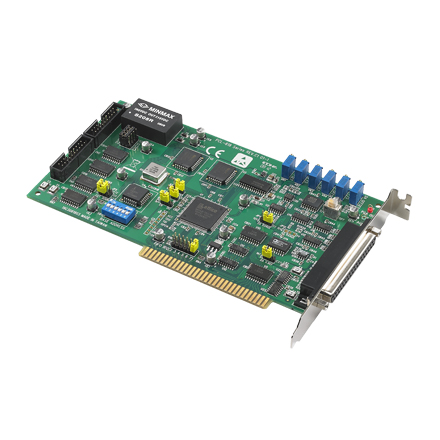

16-Channel Multifunction ISA Card, 40 kS/s, 12bit
PCL-818L-CE
Advantech
SKU: 66439700
Price on request
Available on order
Available on order
System Architecture
System Bus
ISA
Analog Input
Total channels of analog input
16
Single-Ended channels
16
Differential channels
8
Number of Bits
12 Bit
Sampling rate
40 Hz
Voltage range
+/-1 V, +/-2.5 V, +/-5 V, +/-10 V
Analog Output
Channels of analog input
1
Voltage range
0...5 V, 0...10 V
Digital Input
Total channels of digital input
16
Type
Wet contact
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Number of channels
1
Counter capacity
16 Bit
Max frequency
100 kHz
Digital Output
Total channels of digital output
16
Type
Open collector
Output voltage
0~5 V
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Windows XP
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.26 kg
Gross Weight
0.26 kg
