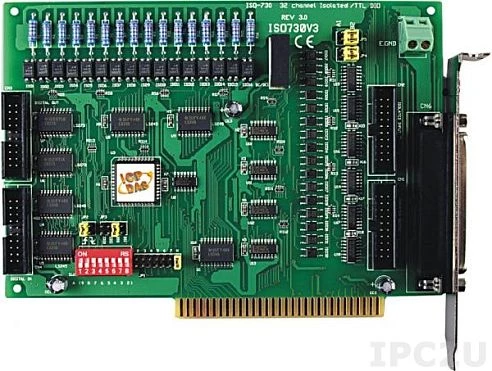

ISO-730
ICP DAS
SKU: 01097100
ISA Isolated 16DI, 16DO, Non-Isolated TTL 16DI, 16DO Card
Price on request
Available
Available
System Architecture
System Bus
ISA
Digital Input
Total channels of digital input
32
Isolation of Digital Input
3750 V
Type
Wet contact
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Digital Output
Total channels of digital output
32
Sink/Source
Sink
Output voltage
0~5 V
Max. load current
0.8 mA
Connectors
Internal Ports
3x20-pin box header, 20-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.15 kg
Gross Weight
0.33 kg
