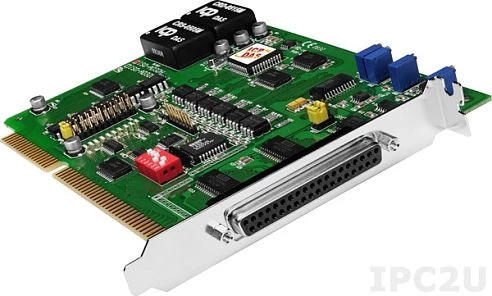

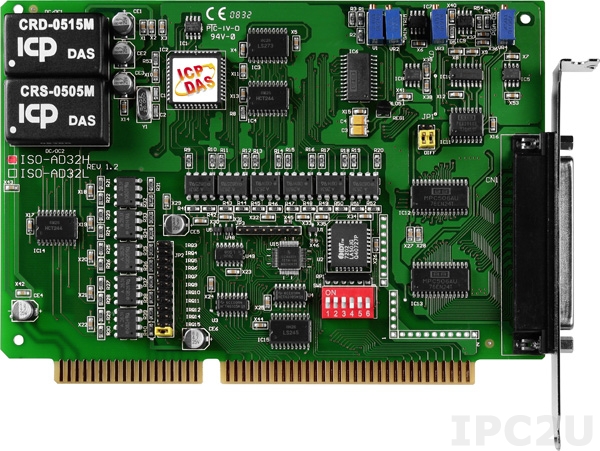

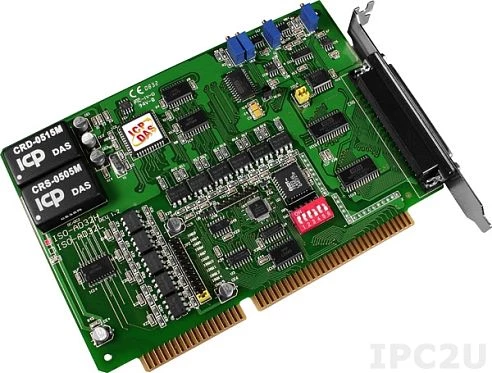

ISO-AD32H
ICP DAS
SKU: 01093100
Adapter ISA, 32SE/16D ADC w/Isolation, Cable Socket CA-4002x1
Price on request
Available
Available
System Architecture
System Bus
ISA
Analog Input
Total channels of analog input
32
Single-Ended channels
32
Differential channels
16
Number of Bits
12 Bit
Sampling rate
200 Hz
Voltage range
+/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, 0...1 V, 0...10 V, +/-10 mV, 0...10 mV, 0...100 mV
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
0.17 kg
Gross Weight
0.48 kg
