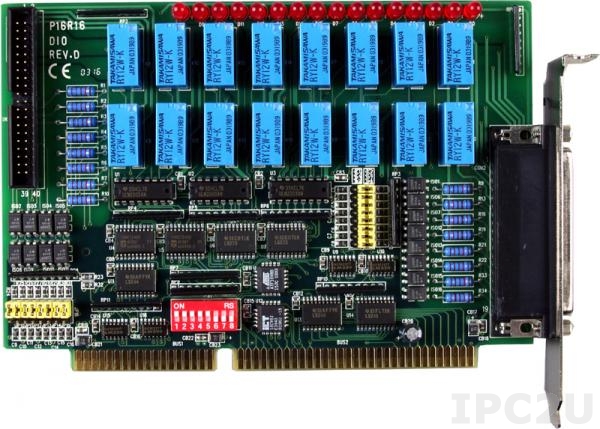

P16R16DIO
ICP DAS
SKU: 01097700
ISA Isolated 16DI & 16 Relay Output Board, Adapter CA-4037x1, Cable Socket CA-4002x2
Price on request
Available
Available
System Architecture
System Bus
ISA
Digital Input
Total channels of digital input
16
Isolation of Digital Input
5000 V
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
16
Type
Electromagnitic relay
Relay (Form A)
8
Contact rating of relay (Form A)
05A@120V AC, 1A@24V DC
Relay (Form C)
8
Contact rating of relay (Form C)
0.5A@120V AC
Connectors
Internal Ports
40-pin box header
Connectors
DB37 Female
Cables
Included Cables
CA-4037B
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.49 kg
