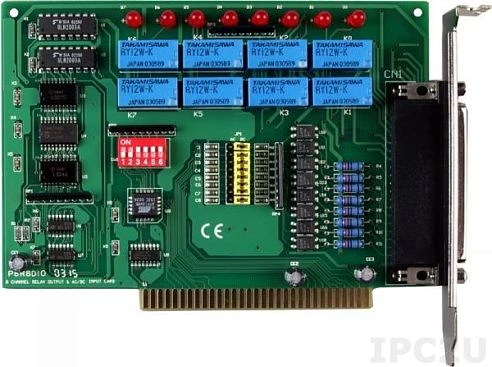

P8R8DIO

ICP DAS
SKU: 01066400
ISA Isolated 8DI & 8 Relay Output Board
Price on request
Available
Available

Daughter Boards
Price with VAT
Price on request
Price on request
Price on request
Daughter Boards
Price with VAT
Price on request
Price on request
Price on request

System Architecture
System Bus
ISA
Digital Input
Total channels of digital input
8
Isolation of Digital Input
5000 V
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
8
Type
Electromagnitic relay
Relay (Form A)
4
Contact rating of relay (Form A)
05A@120V AC, 1A@24V DC
Relay (Form C)
4
Contact rating of relay (Form C)
0.5A@120V AC
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
System Architecture
System Bus
ISA
Digital Input
Total channels of digital input
8
Isolation of Digital Input
5000 V
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
8
Type
Electromagnitic relay
Relay (Form A)
4
Contact rating of relay (Form A)
05A@120V AC, 1A@24V DC
Relay (Form C)
4
Contact rating of relay (Form C)
0.5A@120V AC
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
System Architecture
System Bus
ISA
Digital Input
Total channels of digital input
8
Isolation of Digital Input
5000 V
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
8
Type
Electromagnitic relay
Relay (Form A)
4
Contact rating of relay (Form A)
05A@120V AC, 1A@24V DC
Relay (Form C)
4
Contact rating of relay (Form C)
0.5A@120V AC
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
System Architecture
System Bus
ISA
Digital Input
Total channels of digital input
8
Isolation of Digital Input
5000 V
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
8
Type
Electromagnitic relay
Relay (Form A)
4
Contact rating of relay (Form A)
05A@120V AC, 1A@24V DC
Relay (Form C)
4
Contact rating of relay (Form C)
0.5A@120V AC
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg

Documentation
Datasheet P8R8DIO P8R8DIO, P16R16DIO. User's manual. Quick Start P8R8DIO
Documentation
Datasheet P8R8DIO P8R8DIO, P16R16DIO. User's manual. Quick Start P8R8DIO
Documentation
Datasheet P8R8DIO P8R8DIO, P16R16DIO. User's manual. Quick Start P8R8DIO
Documentation
Datasheet P8R8DIO P8R8DIO, P16R16DIO. User's manual. Quick Start P8R8DIO

Get a Quote
